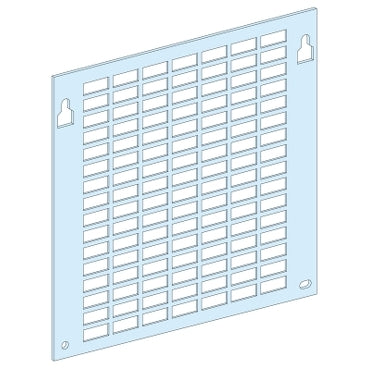

The Schneider Electric 03170 is a slotted mounting plate designed for use within the W600 series enclosures, specifically configured for 4 modular units (4M). This component serves as a foundational element for organizing and securing electrical devices within industrial control panels and distribution systems. Its robust construction ensures reliable mounting of various automation components.

Technical details

• Series: W600
• Configuration: 4 Modular Units (4M)
• Type: Slotted Mounting Plate
• Material: Typically constructed from galvanized steel or a similar durable metal alloy for industrial environments. (Verify material specifications with manufacturer datasheet)
• Mounting Method: Designed for secure attachment within W600 series enclosures, utilizing pre-drilled slots for adjustable component placement.
• Dimensions: Specific dimensions are encoded within the W600 series enclosure specifications. Buyers should consult the Schneider Electric W600 series datasheet for precise measurements.
• Compatibility: Intended for use with Schneider Electric W600 series enclosures.
• Function: Provides a structured surface for mounting DIN rail components, terminal blocks, and other modular electrical devices.

Applications & compatibility

This mounting plate is integral to the assembly of industrial control panels and electrical distribution systems, commonly found in manufacturing facilities, process plants, and building automation projects. It ensures organized and secure installation of electrical components within Schneider Electric's W600 enclosure system, facilitating efficient wiring and maintenance.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric 03170 or contact our technical team for cross-reference assistance with compatible W600 series enclosure components.
