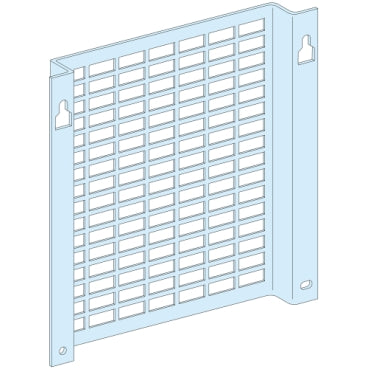

The Schneider Electric 03171 is a recessed mounting plate designed for use within the W600 series enclosures. This component facilitates the secure installation of 4 modular units, providing a structured interface for automation devices. It is engineered to integrate seamlessly into industrial control panels, supporting the organization and accessibility of electrical and electronic equipment.

Technical details

• Series: W600
• Type: Recessed Slotted Mounting Plate
• Capacity: Accommodates 4 modular units
• Mounting: Designed for recessed installation within W600 enclosures
• Material: Typically constructed from durable metal for industrial environments (verify material with manufacturer datasheet)
• Dimensions: Specific dimensions are encoded within the Schneider Electric W600 system architecture; consult the W600 enclosure datasheet for precise measurements.
• Compatibility: Intended for use with Schneider Electric W600 series enclosures and compatible modular automation components.

Applications & compatibility

This mounting plate is integral to building robust control cabinets for various industrial automation applications. It is commonly found in systems requiring organized mounting of modular components, such as programmable logic controllers (PLCs), motor drives, power supplies, and communication modules. Its application spans industries including manufacturing, material handling, and process control where reliable and structured panel building is essential.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric 03171 or contact our technical team for cross-reference assistance with compatible W600 series enclosure components.
