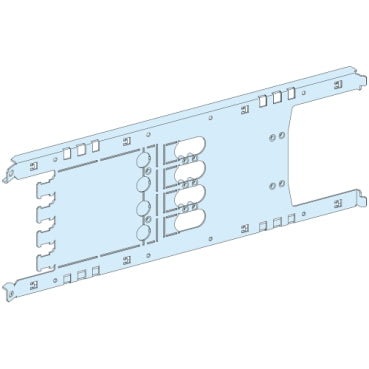

The Schneider Electric 03414 is a mounting plate designed for Vigi NSX/CVS plugin components, specifically for toggle, rotary, or motor-operated versions. This horizontal mounting plate supports 4-pole configurations and is rated for 250A, featuring a width of 650mm. It is engineered to facilitate the secure installation of these protection and control devices within electrical enclosures.

Technical details

• Series Compatibility: Vigi NSX/CVS
• Mounting Type: Plugin Toggle, Rotary, or Motor Operated
• Pole Configuration: 4-Pole
• Current Rating: 250 Amperes
• Mounting Orientation: Horizontal
• Physical Width: 650 mm
• Component Housing: Designed to accommodate plugin modules
• Enclosure Integration: Facilitates secure mounting within electrical panels

Applications & compatibility

This mounting plate is essential for the installation of Schneider Electric Vigi NSX and CVS circuit breakers and their associated operating mechanisms. It is commonly utilized in medium-voltage switchgear, industrial control panels, and power distribution systems found in manufacturing facilities, data centers, and infrastructure projects.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 03414 mounting plate or contact our technical team for cross-reference assistance with compatible Vigi NSX/CVS components.
