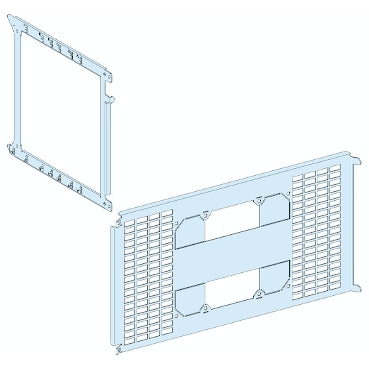

This Schneider Electric mounting plate is designed for NS fixed circuit breakers, specifically for 3-pole and 4-pole configurations rated up to 1600A. It facilitates vertical mounting within enclosures measuring 650mm in width. This component is integral to the proper installation and support of larger frame circuit breakers in power distribution systems.

Technical details

• Series: NS Fixed Circuit Breaker Accessories
• Configuration: Suitable for 3-pole and 4-pole circuit breakers
• Current Rating: Compatible with circuit breakers rated up to 1600A
• Mounting Orientation: Vertical
• Enclosure Width Compatibility: Designed for enclosures with a 650mm width
• Material: Typically constructed from robust metal for durability and structural integrity (verify with manufacturer datasheet for exact material specifications)
• Function: Provides secure and stable mounting for NS series fixed circuit breakers

Applications & compatibility

This mounting plate is commonly utilized in industrial electrical distribution panels, motor control centers, and power management systems. It ensures the correct and safe installation of high-amperage NS series circuit breakers in applications such as manufacturing plants, data centers, and large commercial buildings.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 03482 Schneider Electric mounting plate or contact our technical team for cross-reference assistance with compatible NS series components.
