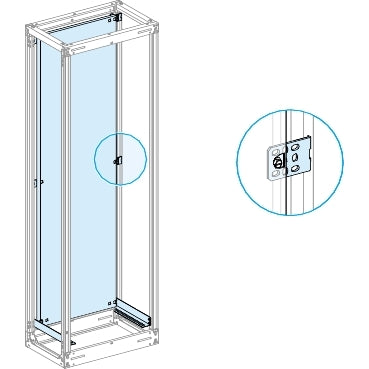

The Schneider Electric 03570 is a plain backplate designed to house up to 36 modules within a 510 mm width enclosure. This component serves as a foundational element for building custom control panels and distribution systems, commonly integrated into larger automation architectures for machine control and power distribution.

Technical details

• Enclosure Type: Plain Backplate
• Module Capacity: Accommodates up to 36 modules
• Width: 510 mm
• Material: Typically constructed from durable materials suitable for industrial environments (verify specific material with manufacturer datasheet)
• Mounting: Designed for panel mounting (verify specific mounting method with manufacturer datasheet)
• Ingress Protection: Specific IP rating not determinable from part number; consult manufacturer datasheet for environmental protection specifications.
• Compatibility: Designed for use with Schneider Electric modular components; verify specific module compatibility with manufacturer documentation.

Applications & compatibility

This backplate is suitable for constructing custom electrical enclosures and control cabinets in various industrial settings. It is commonly found in applications such as machine tool control, material handling systems, and process automation where modularity and specific component configurations are required. Ensure compatibility with your intended Schneider Electric modular components by consulting the manufacturer's product selection guides.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric 03570 backplate or contact our technical team for cross-reference assistance with compatible modular enclosure components.
