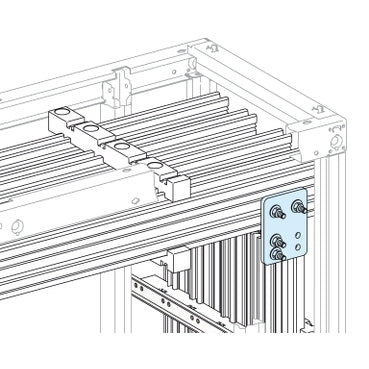

The Schneider Electric LINERGY LGYE series vertical short connector is designed for high-current power distribution applications. This specific unit, identified by the 04604 part number, is rated for 2500 Amperes, indicating its suitability for heavy-duty industrial switchgear and busbar systems. Its vertical orientation and short form factor are optimized for space-constrained electrical enclosures.

Technical details

• Series: LINERGY LGYE
• Configuration: Vertical Short Connector
• Current Rating: 2500 Amperes
• Voltage Class: Verify with manufacturer datasheet for specific voltage rating (e.g., 600V, 1000V).
• Connection Type: Designed for direct busbar or terminal connection.
• Material: Typically constructed from high-conductivity copper alloys for optimal current transfer.
• Mounting: Designed for secure mounting within electrical panels and switchboards.
• Environmental Rating: Consult manufacturer specifications for NEMA or IP ratings relevant to operating environment.

Applications & compatibility

This Schneider Electric connector is commonly employed in large-scale power distribution panels, industrial motor control centers (MCCs), and substations. It facilitates efficient and reliable connections within main power distribution busbar systems found in manufacturing plants, data centers, and utility infrastructure.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric 04604 or contact our technical team for cross-reference assistance with compatible LINERGY components.
