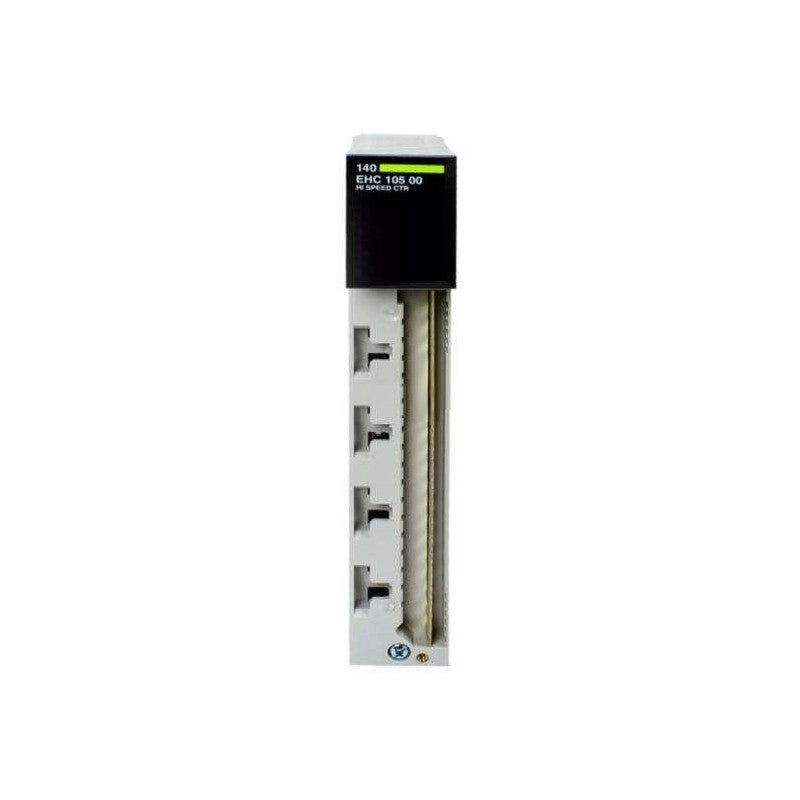

The Schneider Electric 140EHC10500 is a high-speed counter module designed for the Modicon Quantum automation platform. This module provides 8 high-speed input channels, capable of processing signals up to 100,000 Hz. It is engineered to deliver precise and rapid counting capabilities essential for demanding control applications.

Technical details

• Series: Modicon Quantum
• Product Type: High-Speed Counter Module
• Number of Inputs: 8
• Maximum Input Frequency: 100,000 Hz
• Module Functionality: High-speed counting and pulse measurement
• Compatibility: Designed for use with Modicon Quantum PLCs
• Input Signal Type: Typically supports differential or single-ended signals (verify with datasheet for specific voltage levels and configurations)
• Power Requirements: Refer to Modicon Quantum system specifications and module datasheet for exact power consumption and voltage requirements.

Applications & compatibility

This high-speed counter module is integral to applications requiring precise event tracking and high-frequency signal acquisition. It is commonly deployed in packaging machinery, high-speed assembly lines, motion control systems, and any process where rapid pulse counting is critical for accurate operation and data logging.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 140EHC10500 or contact our technical team for cross-reference assistance with compatible Modicon Quantum components.
