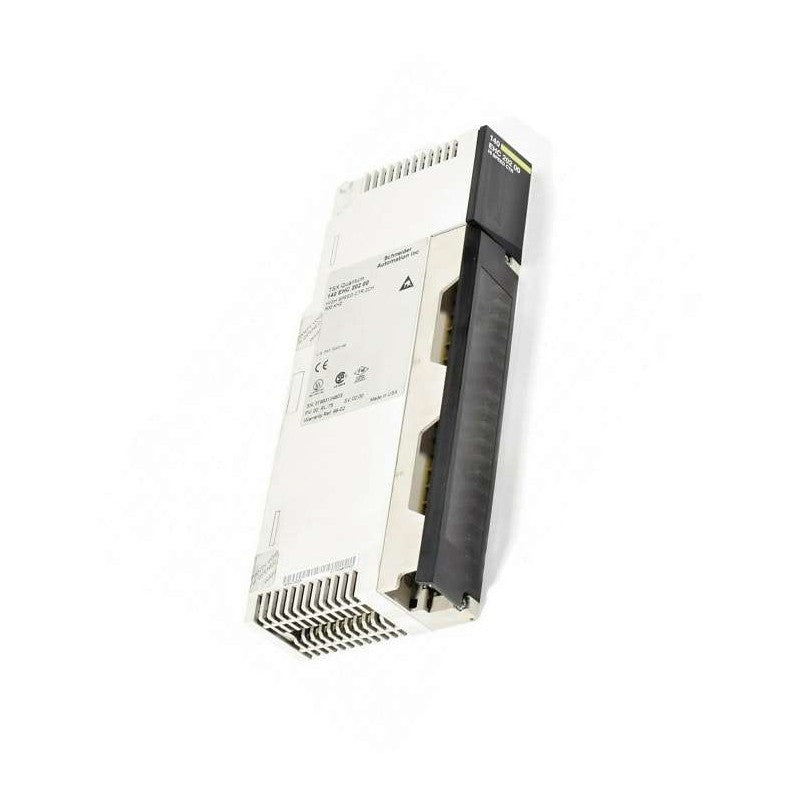

The Schneider Electric 140EHC20200 is a high-speed counter module designed for the Modicon Quantum automation platform. This module facilitates precise and rapid data acquisition for applications requiring high-frequency counting operations.

Technical details

• Series: Modicon Quantum
• Product Type: High-Speed Counter Module
• Maximum Counting Frequency: 500,000 Hz (500 kHz)
• Input Channels: Typically supports multiple high-speed input channels for counting pulses. Specific channel count should be verified against the manufacturer's datasheet.
• Output Functions: May include output capabilities such as pulse generation or comparison outputs based on count values. Refer to the datasheet for detailed functionality.
• Power Requirements: Operates within the standard Modicon Quantum backplane voltage specifications. Specific voltage and current draw should be confirmed via the datasheet.
• Communication Interface: Integrates directly with the Modicon Quantum backplane for data exchange with the PLC processor.
• Module Form Factor: Designed for installation in Modicon Quantum racks.

Applications & compatibility

This high-speed counter module is essential for applications demanding precise measurement and control of rapid events. It is commonly employed in industries such as packaging machinery for high-speed product counting, textile manufacturing for precise fabric length measurement, and in motion control systems for encoder feedback processing.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 140EHC20200 or contact our technical team for cross-reference assistance with compatible Modicon Quantum components.
