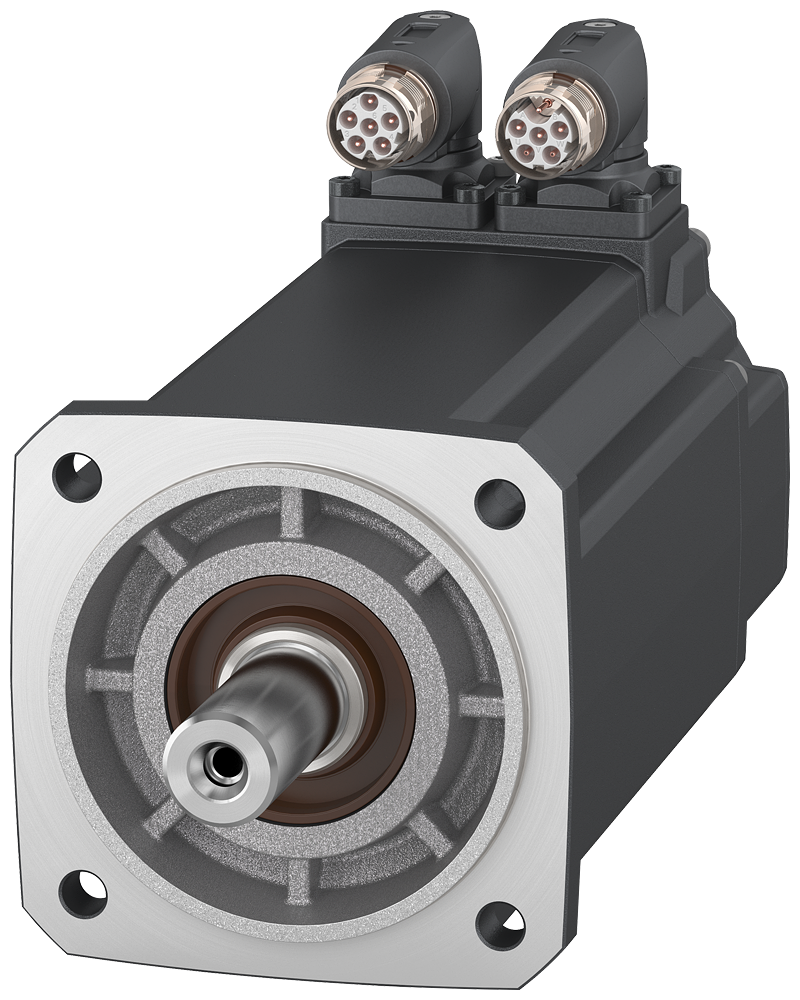

The Schneider Electric SM-140/30/210/P0/45/S1/B1 is a rotary synchronous servo motor from the SM-140 series, engineered for precise motion control in demanding industrial environments. This motor features a 140 mm flange size and delivers a rated torque of 20.0 Nm, making it suitable for applications requiring robust rotational power and accurate positioning. Its design is optimized for integration into automated systems where reliable servo performance is critical.

Technical details

• Series: SM-140
• Motor Type: Rotary Synchronous Servo Motor
• Flange Size: 140 mm
• Rated Torque: 20.0 Nm
• Encoder Resolution: The specific encoder resolution is encoded within the part number suffix (e.g., P0/45 may indicate encoder details). Buyers should consult the manufacturer's datasheet for precise encoder specifications.
• Brake Option: The 'B1' designation in the part number indicates the presence of a brake. Specific brake torque and type should be verified against the datasheet.
• Feedback System: The 'S1' designation likely refers to the type of feedback system. Refer to the manufacturer's documentation for detailed information on the feedback protocol and resolution.
• Voltage/Power Class: The remaining numerical and alphabetical characters in the part number (e.g., 30/210/45) encode specific electrical characteristics such as voltage class, peak torque, and potentially winding resistance or inductance. Verification with the Schneider Electric datasheet is recommended for precise electrical parameters.

Applications & compatibility

This SM-140 series servo motor is commonly employed in high-performance automation tasks across various industries. Applications include robotic arms, CNC machining centers, automated assembly lines, and precision material handling systems. Its robust construction and precise control capabilities ensure reliable operation in demanding production environments.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 19204302V002002 or contact our technical team for cross-reference assistance with compatible SM-140 series components.
