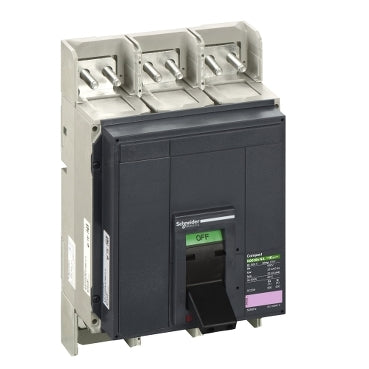

The Schneider Electric ComPact NS800N circuit breaker frame is designed for robust electrical protection in demanding industrial environments. This fixed, 3-pole frame is engineered to support an 800A current rating and a significant interrupting capacity of 50kA at 415VAC. It serves as a foundational component for custom-configured protection systems, requiring the addition of a specific trip unit to define its protective characteristics.

Technical details

• Series: ComPact NS
• Frame Size: NS800N
• Number of Poles: 3P
• Voltage Rating: 415VAC
• Interrupting Capacity: 50kA
• Current Rating: 800A
• Mounting Type: Fixed
• Operation Type: Electrically Operated
• Configuration: Supplied without trip unit

Applications & compatibility

This ComPact NS800N frame is commonly integrated into main distribution panels, motor control centers, and power distribution units for manufacturing facilities, data centers, and utility substations. Its electrically operated nature makes it suitable for remote switching applications and integration into automated control systems where precise and rapid circuit interruption is critical.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 33280 Schneider Electric ComPact NS800N frame or contact our technical team for cross-reference assistance with compatible ComPact NS trip units and accessories.
