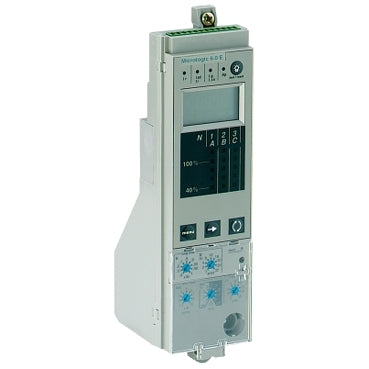

The Schneider Electric Micrologic 6.0 E control unit is designed for Compact NS 630b to 1600 drawout circuit breakers. This advanced control unit integrates LSIG (Long-time, Short-time, Instantaneous, Ground fault) protection functions, providing comprehensive overcurrent and ground fault protection for electrical distribution systems. It is a critical component for ensuring the safe and reliable operation of industrial power infrastructure.

Technical details

• Series: Micrologic 6.0 E
• Compatible Breaker Frame Size: Compact NS 630b to 1600
• Mounting Type: Drawout
• Protection Functions: LSIG (Long-time, Short-time, Instantaneous, Ground fault)
• Ground Fault Protection Settings: Adjustable
• Short-time Delay Settings: Adjustable
• Instantaneous Trip Settings: Adjustable
• Control Unit Type: Electronic Trip Unit

Applications & compatibility

This Micrologic 6.0 E control unit is essential for applications requiring robust circuit protection in medium to large industrial facilities. It is commonly found in power distribution panels for manufacturing plants, data centers, and commercial buildings, ensuring the integrity of electrical systems against faults and overloads.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric 33540 or contact our technical team for cross-reference assistance with compatible Compact NS components.
