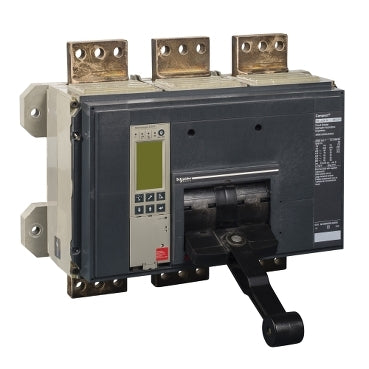

The Schneider Electric ComPact NS2000N is a fixed, manually operated basic frame for circuit breakers, designed for robust power distribution applications. This 3-pole frame is engineered to support a 2000 Ampere current rating and a significant interrupting capacity of 50 kA at 415 VAC. It serves as a foundational component for building custom circuit breaker configurations within the ComPact NS series, suitable for demanding industrial environments.

Technical details

• Series: ComPact NS
• Model Designation: NS2000N
• Frame Type: Basic Frame
• Poles: 3
• Current Rating: 2000 A
• Interrupting Capacity: 50 kA at 415 VAC
• Operation Type: Fixed, Manually Operated
• Trip Unit: Supplied without trip unit; requires separate selection.

Applications & compatibility

This ComPact NS2000N basic frame is integral to the construction of molded case circuit breakers used in main distribution panels, motor control centers, and sub-distribution boards. It is commonly found in heavy industrial facilities, manufacturing plants, and commercial buildings requiring reliable and high-capacity circuit protection for critical loads and power systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 34006 Schneider Electric basic frame or contact our technical team for cross-reference assistance with compatible ComPact NS trip units and accessories.
