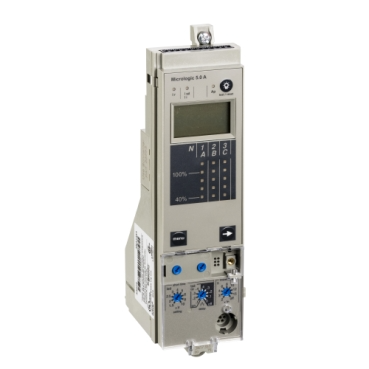

The Schneider Electric Micrologic 5.0 A trip unit is designed for use within the NT fixed and NW 08..63 fixed circuit breaker series. This LSI (Long-Time, Short-Time, Instantaneous) trip unit provides essential protection and control functionalities for industrial electrical distribution systems. It is engineered to integrate seamlessly with specific Schneider Electric molded case circuit breaker frames.

Technical details

• Trip Unit Type: Micrologic 5.0 A
• Protection Functions: LSI (Long-Time, Short-Time, Instantaneous)
• Compatible Circuit Breaker Series: NT fixed, NW 08..63 fixed
• Configuration: LSI settings allow for adjustable long-time pickup and delay, short-time pickup and delay, and instantaneous trip settings.
• Application: Designed for overcurrent and short-circuit protection in fixed installation circuit breakers.
• Control Interface: Provides local control and status indication for the associated circuit breaker.
• Mounting: Intended for installation within compatible Schneider Electric molded case circuit breaker enclosures.

Applications & compatibility

This Micrologic 5.0 A trip unit is commonly specified for use in industrial power distribution panels, motor control centers, and main service disconnects. Its LSI protection capabilities make it suitable for applications requiring precise coordination and protection against various fault conditions in manufacturing facilities, data centers, and commercial buildings.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric 47285 or contact our technical team for cross-reference assistance with compatible NT and NW series components.
