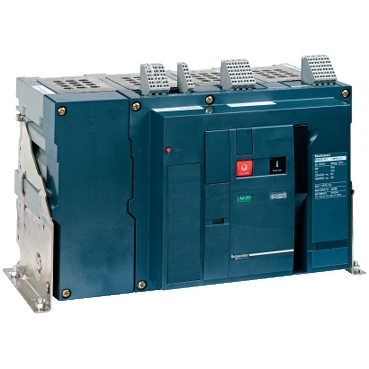

The Schneider Electric Masterpact NW08HA is a switch disconnector designed for robust circuit protection in industrial power distribution systems. This 4-pole unit operates at a nominal voltage of 690V and is rated for 800 Amperes, making it suitable for high-capacity applications. Its fixed mounting configuration ensures a secure and permanent installation within switchgear assemblies.

Technical details

• Series: Masterpact NW
• Product Type: Switch Disconnector
• Rated Operational Voltage: 690 V
• Current Rating: 800 A
• Number of Poles: 4
• Mounting Type: Fixed
• Interrupting Capacity: Verify with manufacturer datasheet for specific ratings.
• Operating Mechanism: Manual (as indicated by switch disconnector function).

Applications & compatibility

This Masterpact NW08HA switch disconnector is commonly employed in main distribution switchboards, motor control centers, and industrial power distribution panels. It is designed for applications requiring reliable isolation of electrical circuits, such as in manufacturing plants, data centers, and large commercial buildings where safety and operational continuity are paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric 48012 or contact our technical team for cross-reference assistance with compatible Masterpact components.
