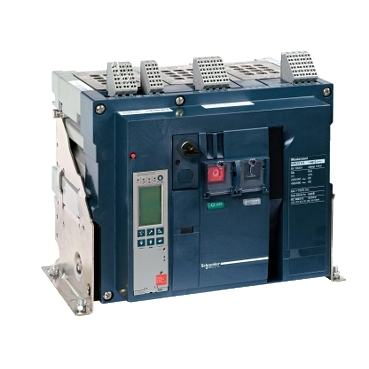

The Schneider Electric Masterpact NW16H1 is a high-capacity air circuit breaker designed for robust power distribution and protection in demanding industrial environments. As part of the Masterpact NW series, this 1600 Amp, 3-pole unit provides essential circuit interruption capabilities for large electrical systems. Its fixed mounting configuration ensures a secure and permanent installation within switchgear assemblies.

Technical details

• Series: Masterpact NW
• Current Rating: 1600 A
• Number of Poles: 3
• Mounting Type: Fixed
• Release Type: Without release (requires external trip unit)
• Interrupting Capacity: Please consult the manufacturer's datasheet for specific interrupting ratings.
• Voltage Class: Please consult the manufacturer's datasheet for specific voltage class information.
• Frame Size: NW16

Applications & compatibility

This Masterpact NW16H1 switch is commonly employed in main distribution panels, motor control centers, and substations within heavy industries such as manufacturing plants, data centers, and utility infrastructure. It is designed to protect electrical circuits from overcurrents and short circuits, ensuring the reliable operation of connected equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric 48043 or contact our technical team for cross-reference assistance with compatible Masterpact components.
