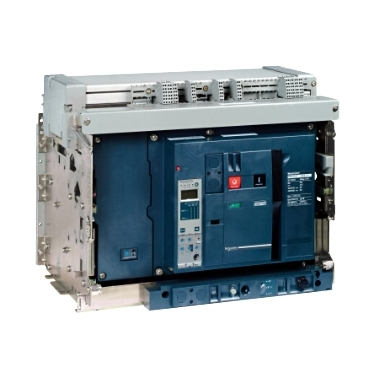

The Schneider Electric MasterPact NW10H2 is a 4-pole circuit breaker frame designed for robust power distribution and protection in demanding industrial environments. This drawout-style frame, rated for 1000A and a breaking capacity of 100kA at 440VAC, is a key component in high-fault current applications. It is engineered to house various control units, offering flexibility for specific protection schemes.

Technical details

• Series: MasterPact NW
• Model Designation: NW10H2
• Pole Configuration: 4-pole
• Current Rating: 1000 Amperes (A)
• Interrupting Capacity (Icu): 100 kA at 440 VAC, 50/60 Hz
• Mounting Type: Drawout
• Control Unit: Supplied without control unit; requires separate purchase and installation.
• Frame Type: Circuit breaker frame

Applications & compatibility

This MasterPact NW10H2 frame is integral to main power distribution switchboards and motor control centers within heavy industries such as manufacturing plants, data centers, and utility substations. Its drawout capability facilitates safe maintenance and replacement of associated protection and control modules without de-energizing the entire system.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 48253 Schneider Electric MasterPact NW10H2 frame or contact our technical team for cross-reference assistance with compatible MasterPact components.
