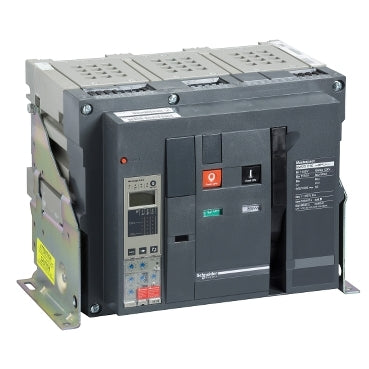

The Schneider Electric Masterpact NW32H1 is a drawout circuit breaker designed for high-capacity power distribution systems. This 3-pole breaker is rated for 3200 Amperes and is a key component in ensuring electrical safety and system reliability within demanding industrial environments. Its drawout design facilitates easier maintenance and replacement without requiring complete system shutdown.

Technical details

• Series: Masterpact NW
• Model Designation: NW32H1
• Current Rating: 3200 A
• Number of Poles: 3
• Mounting Type: Drawout
• Trip Unit: Supplied without a trip unit; requires separate selection and installation.
• Voltage Class: Specific voltage class requires verification against manufacturer datasheet.
• Interrupting Capacity: Specific interrupting capacity requires verification against manufacturer datasheet.

Applications & compatibility

This Masterpact NW32H1 circuit breaker is commonly specified for main distribution panels, large motor control centers, and substations in heavy industries such as manufacturing plants, data centers, and utility infrastructure. It is designed to protect electrical circuits from overcurrents and short circuits, ensuring the integrity of connected equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 48312 Schneider Electric Masterpact NW32H1 or contact our technical team for cross-reference assistance with compatible trip units and accessories.
