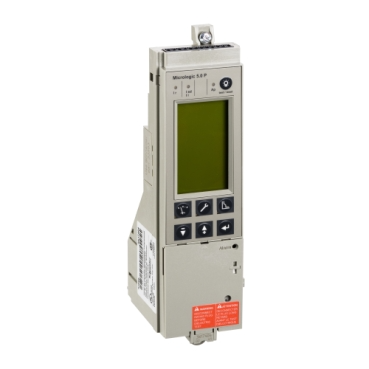

The Schneider Electric Micrologic 5.0 P trip unit is designed for use with fixed and withdrawable NW series circuit breakers, specifically models 08 through 63. This LSI (Long-Time, Short-Time, Instantaneous) trip unit provides essential protection and control functions for industrial electrical distribution systems. It is a key component for ensuring the safe and reliable operation of power circuits in demanding environments.

Technical details

• Trip Unit Type: Micrologic 5.0 P
• Protection Functions: LSI (Long-Time, Short-Time, Instantaneous)
• Compatible Circuit Breaker Series: NW
• Compatible Breaker Frame Sizes: 08 through 63
• Mounting Type: Suitable for both fixed and withdrawable NW breaker installations
• Control and Protection Capabilities: Provides adjustable settings for long-time, short-time, and instantaneous overcurrent protection.
• Communication Protocol: For specific communication protocol details, please consult the manufacturer's datasheet.
• Voltage and Current Ratings: Specific voltage and current ratings are dependent on the associated NW circuit breaker frame size and configuration. Verify compatibility with your system requirements.

Applications & compatibility

This Micrologic 5.0 P trip unit is commonly integrated into Schneider Electric NW series circuit breakers used in main distribution panels, sub-distribution boards, and motor control centers. Applications include protecting feeders in commercial buildings, industrial plants, data centers, and infrastructure projects where reliable overcurrent protection is critical.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric 48363 Micrologic 5.0 P trip unit or contact our technical team for cross-reference assistance with compatible NW series components.
