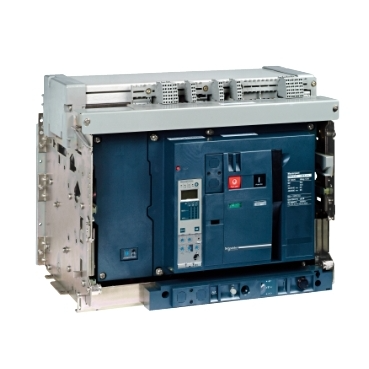

This Schneider Electric MasterPact NW drawout chassis is designed for high-capacity power distribution applications. Specifically engineered for the MasterPact NW20 to NW25 series circuit breakers, this H-type chassis supports 3-pole configurations and accommodates current ratings from 2000A to 2500A. Its drawout functionality facilitates safe and efficient maintenance and replacement of the associated circuit breaker.

Technical details

• Series: MasterPact NW
• Type: Drawout Chassis
• Configuration: 3-pole
• Current Rating: 2000A - 2500A
• Chassis Type: H
• Compatible Breaker Sizes: NW20, NW25
• Functionality: Supports drawout mechanism for circuit breaker insertion and withdrawal.
• Construction: Robust frame designed for industrial environments.

Applications & compatibility

This drawout chassis is integral to the MasterPact NW circuit breaker system, commonly found in main distribution panels, motor control centers, and large industrial facilities requiring robust and reliable power protection. It is essential for applications demanding frequent breaker maintenance or operational flexibility in sectors such as manufacturing, data centers, and utilities.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric 48394 chassis or contact our technical team for cross-reference assistance with compatible MasterPact NW components.
