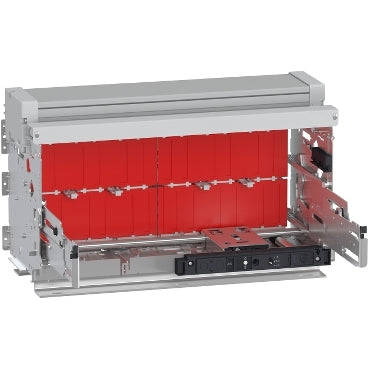

This Schneider Electric chassis is designed for drawout NW4000b circuit breaker applications. It serves as a foundational component for housing and facilitating the withdrawal of the main breaker unit within electrical distribution systems. The H1, H2, and HF designations indicate specific configurations or mounting types within the NW4000b series, ensuring precise fitment and electrical continuity.

Technical details

• Series: NW4000b
• Configuration: Drawout chassis
• Pole Count: 3-pole
• Rated Current: 6300 A
• Compatible Breaker Types: H1, H2, HF
• Functionality: Facilitates safe and efficient insertion and withdrawal of the main circuit breaker unit.
• Construction: Robust frame designed to withstand the mechanical stresses associated with drawout mechanisms and electrical fault conditions.

Applications & compatibility

This chassis is integral to the installation and maintenance of medium-voltage switchgear, commonly found in power distribution substations, industrial facilities, and large commercial buildings. It ensures proper alignment and connection for 6300A rated circuit breakers within the Schneider Electric NW4000b drawout system, supporting applications requiring reliable power isolation and protection.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 48397 Schneider Electric chassis or contact our technical team for cross-reference assistance with compatible NW4000b components.
