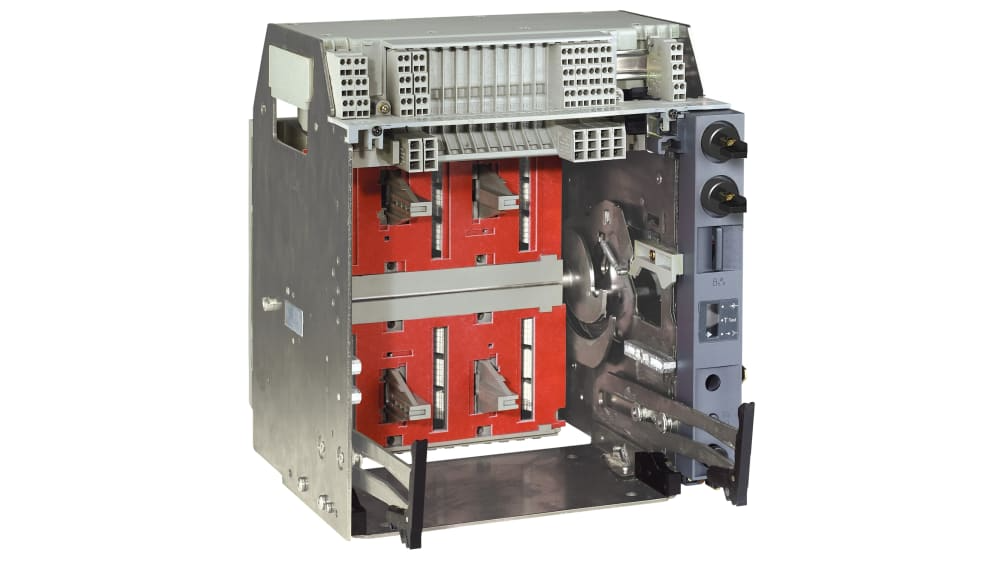

This Schneider Electric removable frame is designed for NW1600N1 switchgear, specifically for H1 and H2 configurations. It provides a robust solution for managing circuit breaker connections within the NW series, ensuring operational integrity and ease of maintenance. The frame's construction facilitates the safe and efficient insertion or removal of the circuit breaker without direct connection manipulation.

Technical details

• Series: NW Series
• Compatible Switchgear: NW1600N1
• Configuration Support: H1, H2
• Number of Poles: 4-pole
• Frame Type: Removable, without integrated connections
• Functionality: Facilitates circuit breaker insertion and removal
• Construction: Designed for secure mounting within NW switchgear

Applications & compatibility

This removable frame is integral to the operation of Schneider Electric NW1600N1 switchgear, commonly found in medium-voltage power distribution systems. It is essential for applications requiring reliable circuit protection and isolation in facilities such as industrial plants, data centers, and utility substations where frequent maintenance or breaker replacement is anticipated.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 48404 Schneider Electric removable frame or contact our technical team for cross-reference assistance with compatible NW series components.
