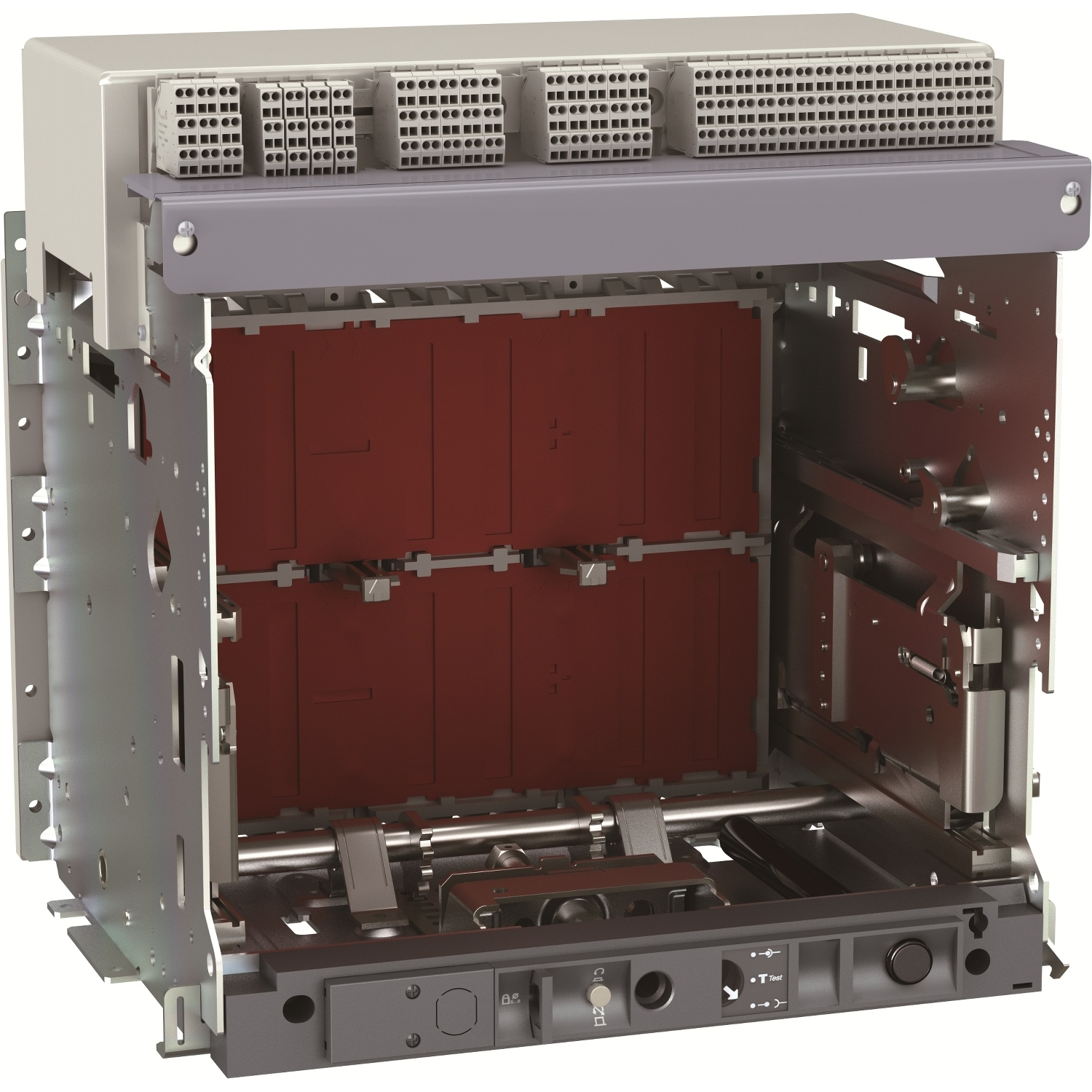

This Schneider Electric chassis is designed for drawout NW2500 circuit breakers, specifically supporting models H1, H10, H2, H3, HA, HA10, and HF. It is engineered for 4-pole configurations and rated for 2500 Amperes, providing a robust foundation for high-capacity electrical distribution and protection systems.

Technical details

• Series: NW2500 Drawout Chassis
• Poles: 4
• Current Rating: 2500 A
• Compatible Breaker Models: H1, H10, H2, H3, HA, HA10, HF
• Configuration: Designed for drawout installation
• Functionality: Provides mechanical support and electrical connection for NW2500 circuit breakers
• Construction: Robust frame for secure mounting and reliable operation
• Application: Suitable for medium-voltage switchgear applications

Applications & compatibility

This chassis is integral to Schneider Electric's NW2500 series switchgear, commonly found in industrial facilities, power generation plants, and large commercial buildings. It ensures secure and reliable integration of circuit breakers into main distribution panels and substations, facilitating efficient power management and fault protection.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 48406 chassis or contact our technical team for cross-reference assistance with compatible Schneider Electric switchgear components.
