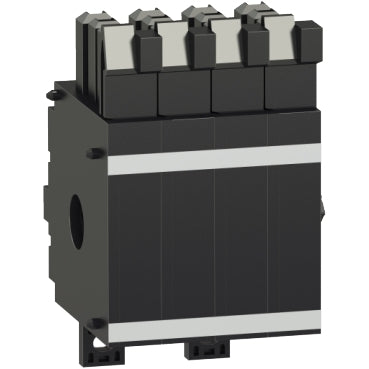

This Schneider Electric auxiliary contact is designed for use with the Masterpact drawout circuit breaker series, specifically models NW08 through NW63. It functions as an additional block, providing four normally open/normally closed (NO/NC) contacts for enhanced control and signaling capabilities within the Masterpact system. The drawout mounting ensures straightforward installation and maintenance for these high-capacity breakers.

Technical details

• Series: Masterpact Drawout
• Compatible Breaker Range: NW08 to NW63
• Contact Configuration: 4 NO/NC (Normally Open/Normally Closed)
• Mounting Type: Drawout
• Minimum Switching Capacity: 100 mA at 24 VDC
• Minimum Load Voltage: 15 VDC
• Minimum Load Current: 2 mA

Applications & compatibility

This auxiliary contact is essential for expanding the control and monitoring functions of Schneider Electric Masterpact NW series drawout circuit breakers. It is commonly integrated into medium-voltage switchgear for power distribution in industrial facilities, data centers, and commercial buildings. Its application extends to systems requiring detailed status feedback, remote signaling, or interlocking logic for circuit breaker operation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 48468 Schneider Electric auxiliary contact or contact our technical team for cross-reference assistance with compatible Masterpact components.
