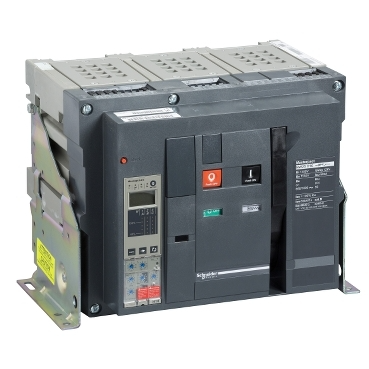

The Schneider Electric Masterpact NW25H10 is an extractable air circuit breaker designed for robust power distribution applications. As a component within the Masterpact NW series, this switch is engineered to provide reliable protection and control for electrical systems requiring high current handling capabilities. Its extractable design facilitates maintenance and operational flexibility in demanding industrial environments.

Technical details

• Series: Masterpact NW
• Model Designation: NW25H10
• Current Rating: 2500 A
• Number of Poles: 3
• Configuration: Extractable
• Interrupting Capacity: Specific interrupting capacity values are not explicitly encoded in the provided part number and should be verified against the manufacturer's datasheet for the NW25H10 model.
• Voltage Rating: Specific voltage ratings are not explicitly encoded in the provided part number and should be verified against the manufacturer's datasheet for the NW25H10 model.
• Trip Unit Type: The specific trip unit type (e.g., Micrologic) is not explicitly encoded in the provided part number and should be verified against the manufacturer's datasheet for the NW25H10 model.

Applications & compatibility

This Masterpact NW circuit breaker is commonly employed in main distribution switchboards for commercial buildings, industrial facilities, and data centers. It is suitable for protecting feeders and outgoing circuits where high fault currents are anticipated, ensuring the safety and integrity of electrical installations. Its compatibility extends to systems requiring reliable and serviceable main incomer or bus tie breaker functions.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric 48730 or contact our technical team for cross-reference assistance with compatible Masterpact NW components.
