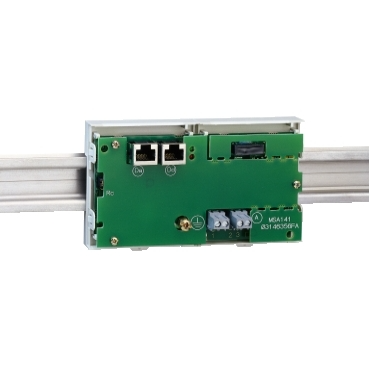

The Schneider Electric 59647 is an analog output module designed for integration within the Sepam series protection relays, specifically models 20, 40, 60, and 80. This module provides essential analog signal output capabilities, enabling the Sepam relays to interface with external control systems or monitoring equipment. Its design facilitates precise control and feedback within complex industrial automation architectures.

Technical details

• Series Compatibility: Schneider Electric Sepam Series 20, Sepam Series 40, Sepam Series 60, Sepam Series 80
• Module Type: Analog Output Module
• Functionality: Provides analog signal output for control and monitoring purposes.
• Signal Type: Analog (specific signal type, e.g., 4-20mA, 0-10V, should be verified against manufacturer datasheet)
• Voltage/Current Ratings: Specific voltage and current ratings for the analog output are not explicitly defined by the part number and should be confirmed with the manufacturer's datasheet.
• Form Factor: Designed for direct integration into Sepam relay modules.
• Protocol: Communication protocol is dependent on the host Sepam relay and its configuration; this module primarily handles analog signal transmission.

Applications & compatibility

This analog output module is critical for applications requiring precise analog signal transmission from Sepam protection relays. It is commonly deployed in electrical substations, industrial power distribution systems, and motor control centers. Its compatibility with the Sepam 20, 40, 60, and 80 series ensures seamless integration into existing or new protection and control schemes.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 59647 or contact our technical team for cross-reference assistance with compatible Sepam series components.
