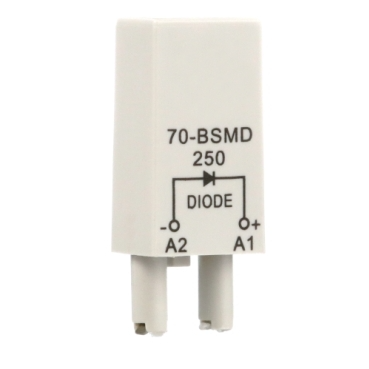

The Schneider Electric 70-BSMD 250 is a protection module designed for use with SE Relays, specifically the 782H hermetically sealed relay series. This module incorporates diode protection, a critical component for safeguarding sensitive electronic circuits from voltage spikes and reverse polarity. Its design is optimized for DC voltage applications, ensuring reliable operation within specified parameters.

Technical details

• Protection Type: Diode Protection Module
• Compatible Relay Series: SE Relays 782H Hermetically Sealed Relays
• Voltage Rating: 6/250V DC
• Functionality: Provides overvoltage and reverse polarity protection for connected relays.
• Component Type: Electronic protection module.
• Series Designation: BSMD (indicative of a protection module within the SE Relays ecosystem).
• Application Voltage: Suitable for DC circuits within the specified voltage range.

Applications & compatibility

This protection module is essential for applications requiring robust DC circuit protection, commonly found in control systems for industrial machinery, power distribution units, and specialized electronic assemblies. It ensures the longevity and reliable performance of 782H hermetically sealed relays in demanding environments.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 70-BSMD 250 or contact our technical team for cross-reference assistance with compatible SE Relays components.
