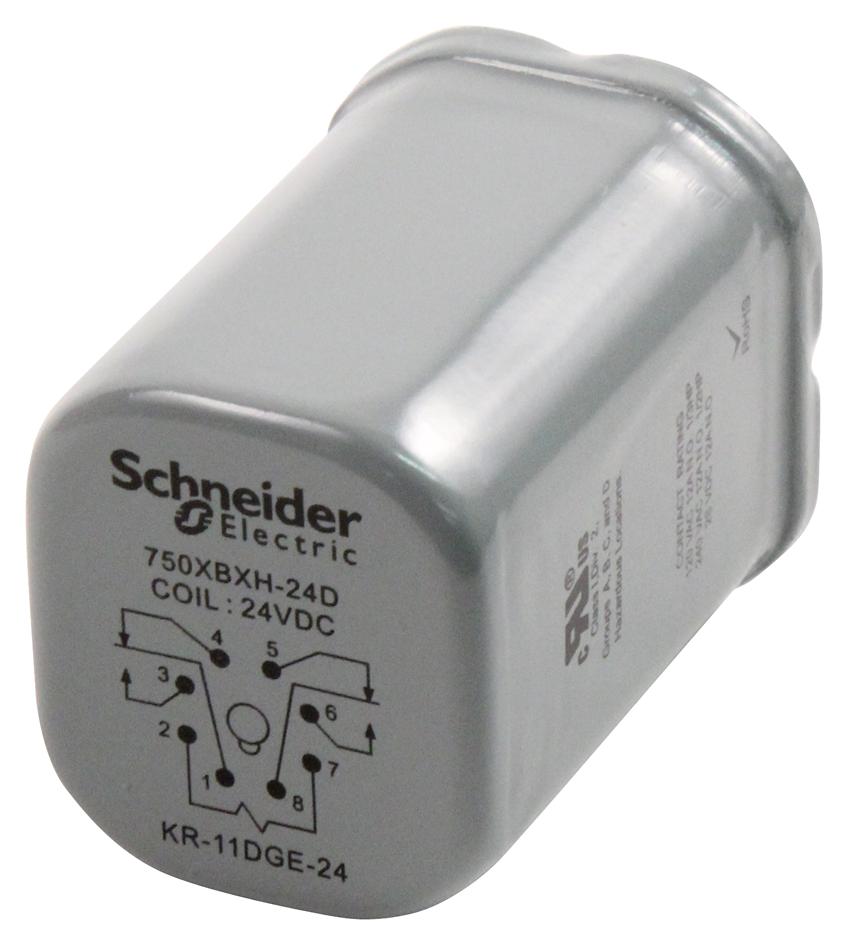

The Schneider Electric 750XBXH-24D is a DPDT power relay designed for control circuit applications. This relay is part of the Schneider Electric 700 Series, a widely recognized line of industrial control components. Its 24V DC coil voltage makes it suitable for integration into low-voltage DC control systems commonly found in manufacturing automation.

Technical details

• Series: Schneider Electric 700 Series
• Contact Configuration: Double Pole Double Throw (DPDT)
• Coil Voltage: 24V DC
• Actuation Type: A-plug (indicates a plug-in style relay for easy replacement and wiring)
• Relay Type: Power Relay
• Mounting Style: Plug-in socket compatible (verify socket compatibility with datasheet)
• Contact Rating: Refer to manufacturer datasheet for specific current and voltage ratings per pole.
• Operating Temperature Range: Refer to manufacturer datasheet for environmental specifications.

Applications & compatibility

This Schneider Electric DPDT relay is commonly employed in control panels for machinery such as packaging equipment, material handling systems, and assembly lines. Its plug-in design facilitates quick maintenance and replacement in automated processes where downtime is critical. It is compatible with standard 24V DC control power sources.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 750XBXH-24D or contact our technical team for cross-reference assistance with compatible 700 Series components.
