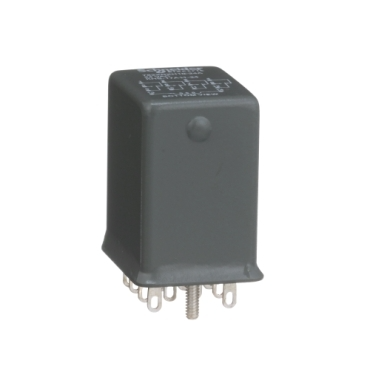

The Schneider Electric 782XDXH10-120A is a 4PDT (Double Pole Double Throw) general-purpose relay designed for control circuit applications. This Herm Ice Cube relay is part of Schneider Electric's extensive relay offerings, commonly integrated into control panels for machinery and automation systems. Its robust construction and reliable switching capabilities make it suitable for demanding industrial environments.

Technical details

• Relay Type: General Purpose Relay
• Form Factor: Herm Ice Cube
• Contact Configuration: 4PDT (4 Form C contacts)
• Contact Rating: 3 Ampere (A)
• Coil Voltage: 120VAC (indicated by '120A' in the part number)
• Series Designation: 782XDX (indicative of a specific Schneider Electric relay series, further details should be confirmed via datasheet)
• Switching Function: Double Pole Double Throw
• Contact Material: Typically silver alloy for reliable conductivity, verify with datasheet for exact composition.

Applications & compatibility

This 782XDXH10-120A relay is frequently employed in motor control circuits, lighting control systems, and logic interlocks within industrial automation. It serves as a critical component in programmable logic controller (PLC) output modules and standalone control panels for applications such as conveyor systems, HVAC units, and process control equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 782XDXH10-120A or contact our technical team for cross-reference assistance with compatible Schneider Electric relay components.
