Siemens

7ML5440-1HA00-1AA2 Siemens

Name: 7ML5440-1HA00-1AA2 Siemens
Brand: Siemens
Availability: InStock

OEM surplus verifiedShips worldwide

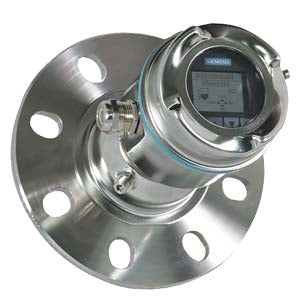

SITRANS LR560 Radar level transmitter with flush lens antenna: continuous, non-contact, 100 m (328 ft) range, for general solids applications. Measurement and process temperature range: 100m (328 ft) max range, -40 C degrees to +200 C degrees Process connection: Universal flat...

Lead time

24h

Typical quote turnaround on in-stock items

Warranty

24 months

Coverage on eligible surplus and refurbished inventory

Inventory network

5M+

Parts across brands, PLCs, drives, sensors and motors

Request pricing for stock confirmation, condition and freight options

Trusted seller

Get a fast quote

Need help matching part numbers?

Talk to a specialist

Description

SITRANS LR560 Radar level transmitter with flush lens antenna: continuous, non-contact, 100 m (328 ft) range, for general solids applications. Measurement and process temperature range: 100m (328 ft) max range, -40 C degrees to +200 C degrees Process connection: Universal flat-faced flange fits ANSI/DIN/JIS flanges: 4" / 100 mm, painted aluminum, with integral aimer Enclosure (with cable inlet): Stainless Steel, 1 X 1/2" NPT . Label: Sitrans LR560 Pressure Rating: 3 bar g (40 psi g) maximum Output/communication: 4 to 20 mA, HART Approvals: Ordinary Locations/General Purpose (Non-Ex), FM, cCSAus, IC, FCC, CE, UKCA, RED, RCM Local display interface: With LDI (local display interface)

Shipping & returns

We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.

All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
