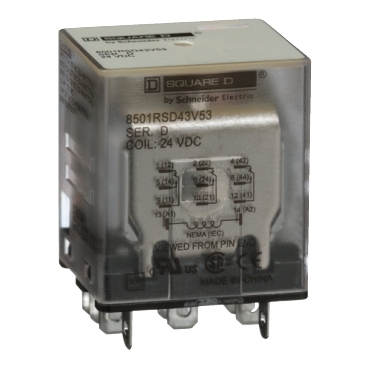

Part of the Schneider Electric Harmony 8501R series, this miniature relay is engineered for reliable control applications. It features a Single Pole Double Throw (SPDT) contact configuration, providing one normally open (NO) and one normally closed (NC) contact. This relay is suitable for switching loads up to 1 horsepower at 277V AC and handles a resistive load of 15A at 120V AC.

Technical details

• Series: Schneider Electric Harmony 8501R
• Contact Configuration: SPDT (1 NO + 1 NC)
• Number of Blades: 5
• Coil Voltage: 24V DC
• AC Motor Load Rating: 1 HP at 277V AC
• Resistive Load Rating: 15A at 120V AC
• Terminal Type: Blade terminals
• Enclosure Type: Miniature relay

Applications & compatibility

This 8501RSD41V53 relay is commonly utilized in control panels for machinery such as packaging equipment, material handling systems, and general industrial automation. Its versatile contact arrangement and robust load ratings make it a suitable component for various switching functions within these applications.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 8501RSD41V53 or contact our technical team for cross-reference assistance with compatible Harmony 8501R components.
