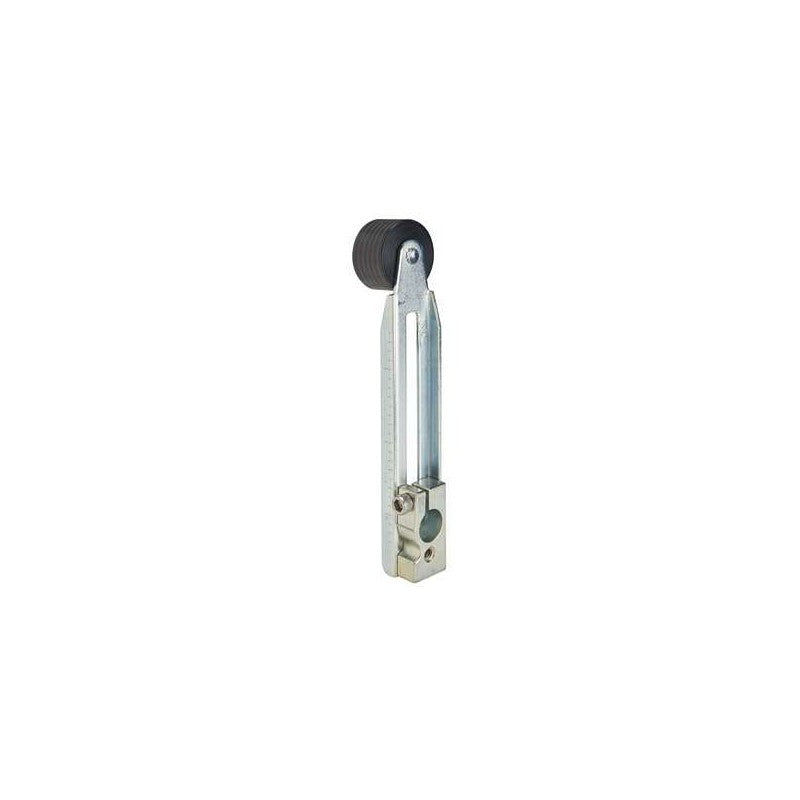

The Schneider Electric 9007HA22 is a limit switch lever arm assembly designed for robust industrial environments. This component is part of the 900 Series limit switch family, known for its durability and reliability in demanding applications. The "HA" designation typically indicates a standard lever arm configuration, and the "+OPTIONS" suggests potential for additional features or configurations not explicitly detailed in the base part number.

Technical details

• Series: Schneider Electric 900 Series
• Actuator Type: Lever Arm
• Actuator Material: Likely metal construction for durability, verify with datasheet.
• Mounting: Designed for standard limit switch body mounting, verify compatibility with specific switch models.
• Operating Temperature Range: Consult manufacturer datasheet for specific environmental ratings.
• Enclosure Rating: Typically designed for NEMA or IP rated enclosures, verify with datasheet.
• Contact Configuration: Lever arm actuates internal switch contacts; specific configuration (e.g., SPDT, DPDT) depends on the associated limit switch body.
• Actuation Force: Varies based on switch body and lever geometry; consult datasheet for precise values.

Applications & compatibility

This lever arm assembly is commonly employed in machine tool applications, material handling systems, and automated assembly lines where precise position detection is critical. It is designed to interface with compatible Schneider Electric 900 Series limit switch bodies, providing a mechanical interface for detecting the presence or absence of an object or the end of travel for moving components.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 9007HA22 or contact our technical team for cross-reference assistance with compatible 900 Series components.
