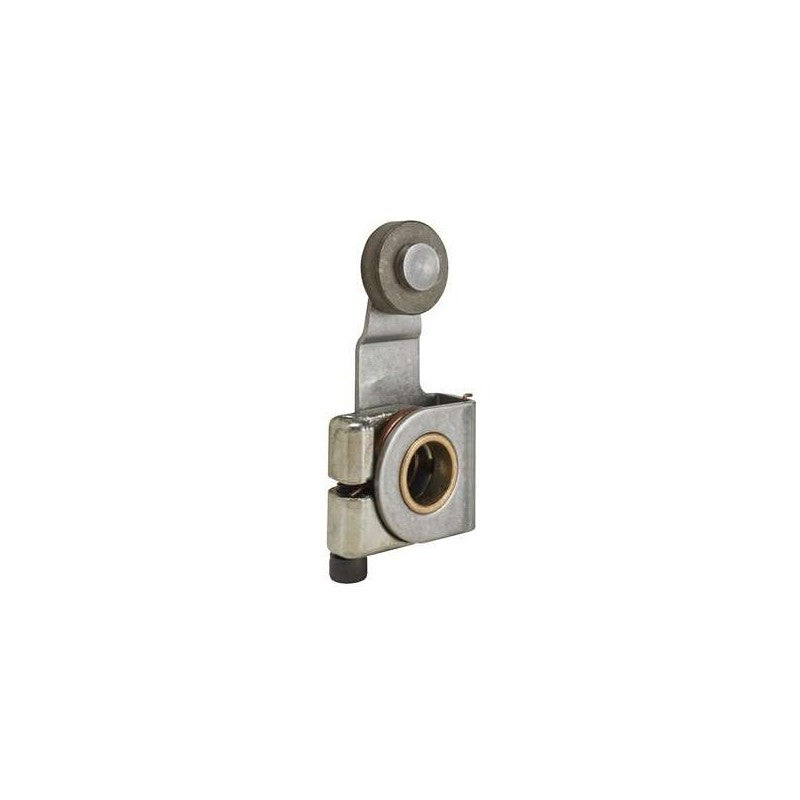

The Schneider Electric 9007RA11 is a limit switch lever arm assembly designed for robust industrial environments. This component is part of the Schneider Electric Limit Switch product family, often utilized in heavy-duty machinery and automated production lines where precise position detection is critical. The "AW+C" designation suggests specific actuator head and contact block configurations, though further verification against manufacturer datasheets is recommended for precise details.

Technical details

• Actuator Type: Lever Arm
• Actuator Head Configuration: AW+C (Specific configuration requires datasheet verification)
• Switch Body Compatibility: Designed to interface with compatible Schneider Electric limit switch bodies.
• Mounting Style: Lever arm assembly for direct attachment to limit switch heads.
• Operating Temperature Range: Consult manufacturer datasheet for specific environmental ratings.
• Enclosure Rating: Consult manufacturer datasheet for specific ingress protection ratings.
• Mechanical Actuation: Lever arm provides mechanical actuation for the limit switch mechanism.
• Electrical Contact Configuration: Dependent on the associated switch body; AW+C may indicate specific contact arrangements.

Applications & compatibility

This lever arm assembly is commonly employed in applications requiring reliable end-of-travel detection or position sensing on automated equipment. It is suitable for use in machine tools, material handling systems, packaging machinery, and other industrial automation scenarios where a physical limit needs to be detected by a switch. Compatibility is primarily with Schneider Electric limit switch bodies that accept this type of lever arm actuator.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 9007RA11 or contact our technical team for cross-reference assistance with compatible Schneider Electric limit switch components.
