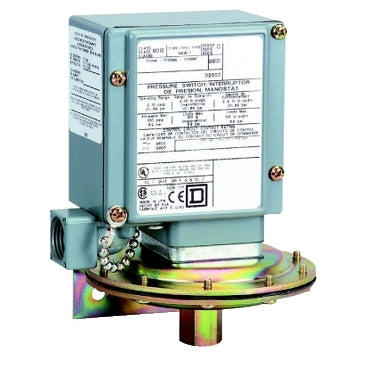

The Schneider Electric 9012GAW1 is a dual-threshold pressure switch designed for applications requiring precise pressure monitoring and control. This unit operates within the 9012G series, a line known for its robust construction and reliable performance in demanding industrial environments. It features an adjustable scale for setting pressure ranges and offers two distinct switching thresholds to manage system operations based on pressure fluctuations.

Technical details

• Series: 9012G
• Type: Pressure Switch
• Scale: Adjustable
• Thresholds: 2
• Pressure Range: 0.2 to 10 PSIG
• Actuation: Diaphragm
• Contact Configuration: Single Pole Double Throw (SPDT) - typical for this series, verify with datasheet
• Enclosure Type: General Purpose - typical for this model designation, verify with datasheet

Applications & compatibility

This pressure switch is commonly employed in systems where precise control of pneumatic or hydraulic pressure is critical. Applications include process control loops, machine tool operations, and automated assembly lines. Its dual-threshold functionality makes it suitable for applications requiring distinct high and low-pressure setpoints, such as pump control or safety interlocks.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 9012GAW1 or contact our technical team for cross-reference assistance with compatible 9012G series components.
