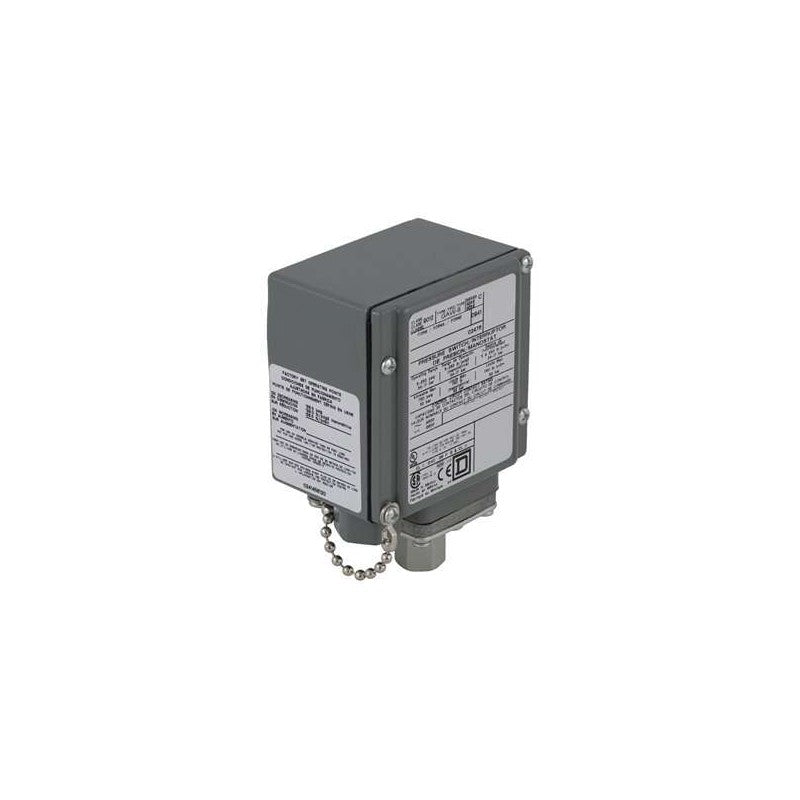

The Schneider Electric 9012G series pressure switch is designed for robust industrial applications requiring precise pressure monitoring. This specific model, identified by the part number 9012GAW25Q4, features an adjustable scale for flexible setup and offers two distinct threshold settings. It is engineered to operate within a pressure range of 3.0 to 150 psig, making it suitable for a variety of control and safety circuits.

Technical details

• Series: 9012G
• Type: Adjustable Scale Pressure Switch
• Number of Thresholds: 2
• Adjustable Pressure Range: 3.0 to 150 psig
• Actuation Type: Diaphragm (typical for 9012G series, verify with datasheet)
• Electrical Rating: Verify with manufacturer datasheet for specific voltage and current ratings. The part number does not explicitly encode this information.
• Enclosure Type: Verify with manufacturer datasheet. The 'Q4' designation may indicate specific enclosure or terminal block configurations.
• Contact Configuration: Typically DPST (Double Pole Single Throw) or DPDT (Double Pole Double Throw) for 9012G series, verify with datasheet.

Applications & compatibility

This Schneider Electric pressure switch is commonly employed in systems where precise control of fluid or gas pressure is critical. Applications include pump control, compressor management, and safety interlocks on machinery such as packaging equipment, material handling systems, and water treatment plants. Its adjustable thresholds allow for fine-tuning to specific operational requirements.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 9012GAW25Q4 or contact our technical team for cross-reference assistance with compatible 9012G series components.
