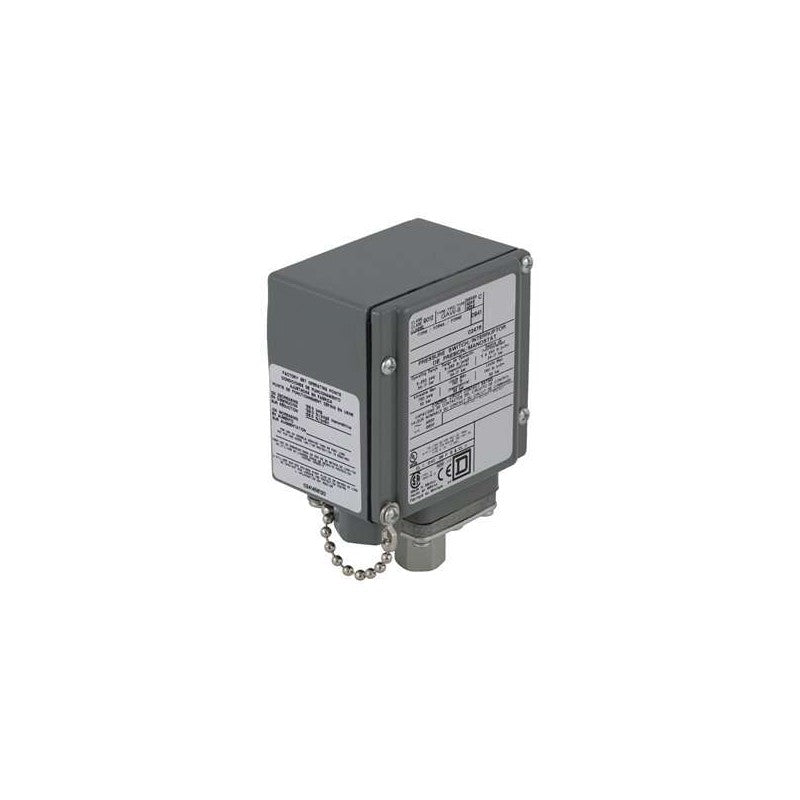

The Schneider Electric 9012G series pressure switch is designed for robust industrial control applications. This specific model, identified by the part number 9012GAW26, is part of the 9012G family, known for its reliable pressure sensing capabilities. It features an adjustable scale for precise setting of operational thresholds.

Technical details

• Series: 9012G
• Type: Adjustable Scale Pressure Switch
• Number of Thresholds: 2
• Adjustable Pressure Range: 5.0 to 250 psig
• Actuation Type: Diaphragm
• Enclosure Type: NEMA 1 (General Purpose)
• Electrical Rating: Typically rated for 10A @ 120/240/480 VAC, but consult manufacturer datasheet for precise specifications.
• Contact Configuration: Double Pole Double Throw (DPDT)

Applications & compatibility

This pressure switch is commonly employed in systems requiring precise control over fluid or gas pressure. Applications include pump control, compressor management, and process monitoring in sectors such as water treatment, HVAC systems, and general manufacturing environments. It is designed to interface with standard industrial control circuits.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 9012GAW26 or contact our technical team for cross-reference assistance with compatible 9012G series components.
