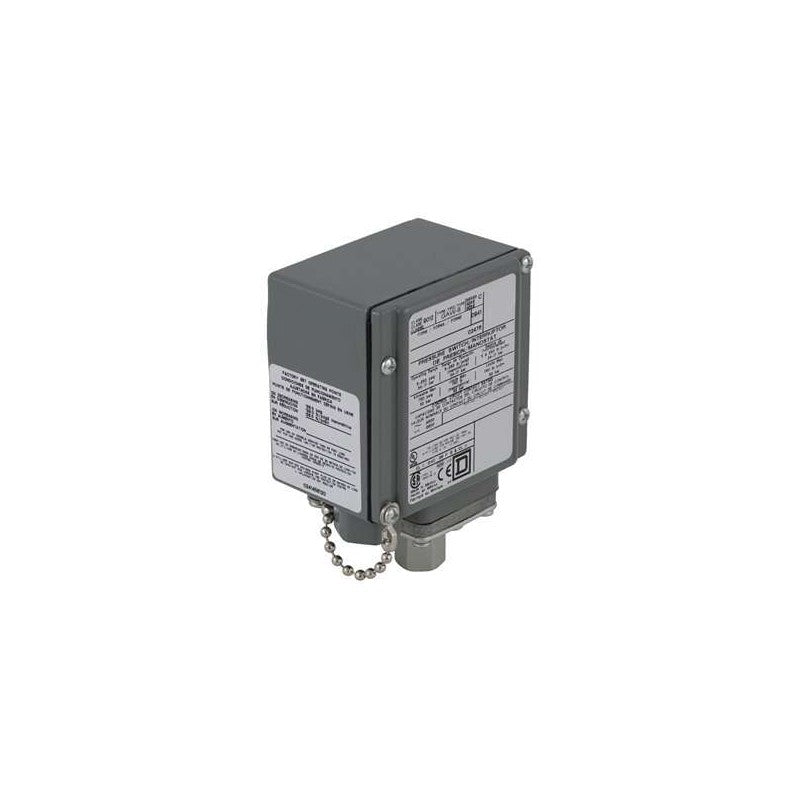

The Schneider Electric 9012G series pressure switch is designed for robust industrial environments, offering precise control over pneumatic and hydraulic systems. This specific model, identified by the part number 9012GAW5, features an adjustable scale for flexible pressure range setting and dual threshold capabilities. It is commonly integrated into machinery requiring reliable pressure monitoring and actuation.

Technical details

• Series: 9012G
• Type: Adjustable Scale Pressure Switch
• Thresholds: 2
• Adjustable Pressure Range: 3.0 to 150 psig
• Actuation Type: Diaphragm
• Enclosure Type: NEMA 1 (General Purpose)
• Electrical Rating: Typically rated for 10A at 120/240/480 VAC, 1/2 HP at 120 VAC, 1 HP at 240 VAC. Verify with manufacturer datasheet for exact specifications.
• Contact Configuration: SPDT (Single Pole Double Throw)

Applications & compatibility

This pressure switch is suitable for a wide array of industrial applications, including but not limited to, compressor control, pump operation, and process automation. Its durable construction and adjustable settings make it ideal for use in manufacturing plants, water treatment facilities, and on mobile hydraulic equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 9012GAW5 or contact our technical team for cross-reference assistance with compatible 9012G series components.
