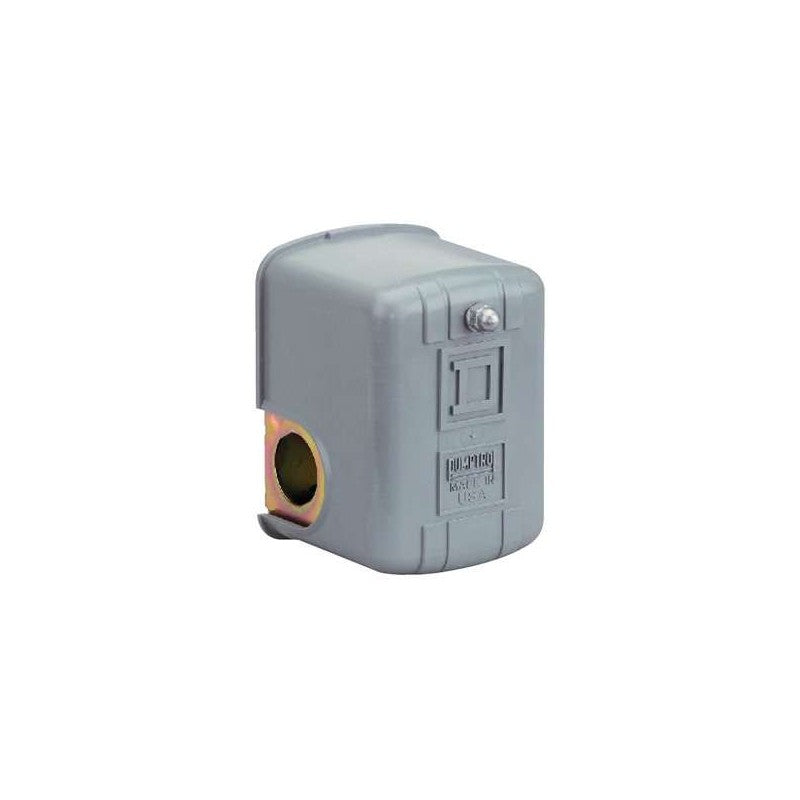

The Schneider Electric 9013FRG9J23 is a pressure switch designed for reverse action control, commonly utilized in water pump applications. This series of pressure switches is engineered to manage system pressure by opening or closing electrical contacts based on predefined pressure setpoints. The 9013FR series offers robust construction suitable for demanding industrial environments.

Technical details

• Series: 9013FR
• Action Type: Reverse Action (contacts open on increasing pressure, close on decreasing pressure)
• Differential Adjustment Range: 40 psi to 20 psi
• Operating Pressure Range: Typically designed for applications where pressure fluctuates between 20 psi and 40 psi, with specific cut-in and cut-out points determined by the differential setting.
• Electrical Rating: Specific voltage and amperage ratings are not explicitly defined by the provided part number and should be verified against the manufacturer's datasheet.
• Enclosure Type: Standard industrial enclosure suitable for pump control applications.
• Connection Type: Standard threaded electrical conduit connection.
• Diaphragm Material: Typically nitrile or neoprene, suitable for water service.

Applications & compatibility

This Schneider Electric pressure switch is ideal for controlling single-phase or three-phase water pumps in residential, commercial, and light industrial settings. It is commonly found in well water systems, booster pump applications, and irrigation systems where precise pressure regulation is required to prevent pump cycling and maintain consistent water delivery.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 9013FRG9J23 or contact our technical team for cross-reference assistance with compatible Schneider Electric pump control components.
