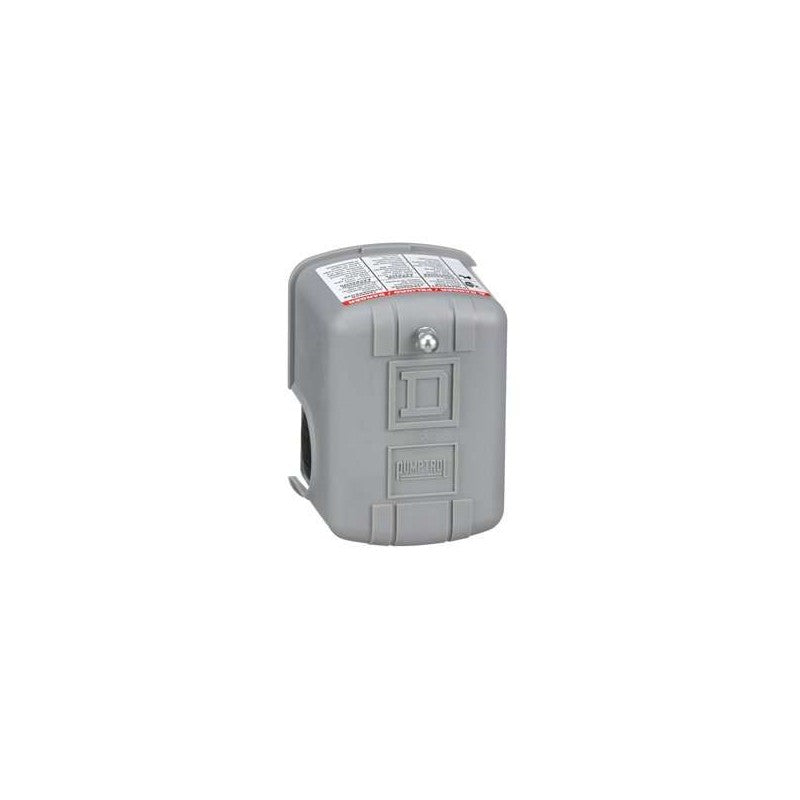

The Schneider Electric 9013FSG2J20 is a pressure switch designed for water pump applications. This model features an adjustable differential pressure setting, allowing for precise control within a specified operating range. It is part of the 9013FS series, known for its robust construction and reliability in demanding environments.

Technical details

• Series: 9013FS
• Type: Adjustable Differential Pressure Switch
• Pressure Range: 20-40 psi (cut-in/cut-out differential)
• Actuation: Diaphragm
• Contact Configuration: Single Pole Double Throw (SPDT) - inferred from common configurations for this series and application
• Electrical Rating: Typically rated for 120/240 VAC, 15A resistive load. Buyers should verify specific ratings against the manufacturer's datasheet.
• Enclosure Type: Standard NEMA enclosure suitable for general-purpose industrial use. Buyers should verify specific enclosure details against the manufacturer's datasheet.
• Connection Type: Threaded electrical conduit entry and pressure port. Buyers should verify specific port sizes and thread types against the manufacturer's datasheet.

Applications & compatibility

This pressure switch is commonly employed in residential and light commercial water systems to control the operation of electric pumps. It is suitable for applications requiring automatic pump cycling based on system pressure, such as well water systems, booster pump systems, and irrigation systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 9013FSG2J20 or contact our technical team for cross-reference assistance with compatible Schneider Electric pressure control components.
