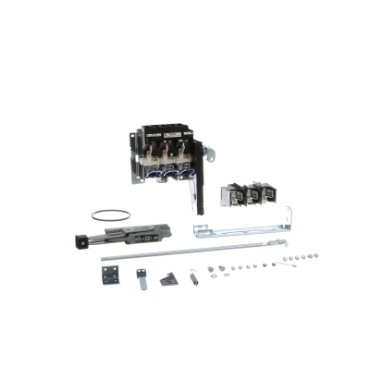

The Schneider Electric 9422TDF63 is an operating mechanism designed for flange-mounted applications, offering variable depth adjustment. This component is engineered to support H, K, J, and R type fuseholders, providing a robust switching solution for electrical distribution systems. Its construction facilitates reliable operation within demanding industrial environments.

Technical details

• Series: 9422
• Type: Flange-mounted operating mechanism with variable depth
• Current Rating: 60 Amperes (A)
• Voltage Rating: 600 Volts (V)
• Fuseholder Compatibility: Supports H, K, J, and R fuseholder types
• Switch Mechanism: Integrated switch functionality
• Mounting: Designed for flange mounting

Applications & compatibility

This operating mechanism is commonly utilized in motor control centers, power distribution panels, and switchgear assemblies. It is suitable for applications requiring reliable manual control and protection of electrical circuits in industries such as manufacturing, material handling, and building automation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the 9422TDF63 or contact our technical team for cross-reference assistance with compatible Schneider Electric components.
