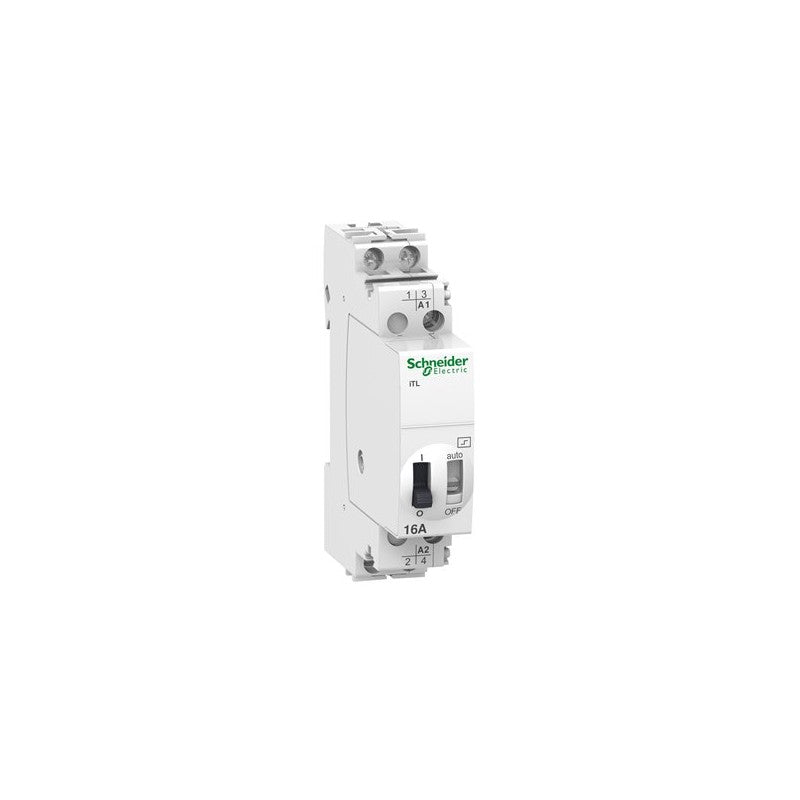

Schneider Electric's iTL impulse relay is designed for control circuit applications requiring latching functionality. This 2-pole relay features two normally open (NO) contacts, rated for 16A, and operates with a versatile coil input. It is suitable for integration into electrical panels and control systems where sequential switching or memory functions are needed.

Technical details

• Series: iTL Impulse Relay
• Number of Poles: 2
• Contact Configuration: 2 Normally Open (NO)
• Rated Current: 16A
• Coil Voltage Options: 12 VAC (50/60Hz) and 6 VDC
• Impulse Operation: Provides latching functionality, maintaining contact state after the coil signal is removed.
• Terminal Type: Screw terminals for secure wiring connections.
• Mounting: DIN rail mountable for standard industrial enclosures.

Applications & compatibility

This Schneider Electric impulse relay is commonly employed in building automation systems, lighting control, and industrial machinery where a maintained state is required after a momentary pulse. It is compatible with standard control panels and can be used in conjunction with pushbuttons, timers, or PLC outputs to manage circuits that need to remain energized or de-energized until a subsequent impulse is received.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9C30012 or contact our technical team for cross-reference assistance with compatible iTL series components.
