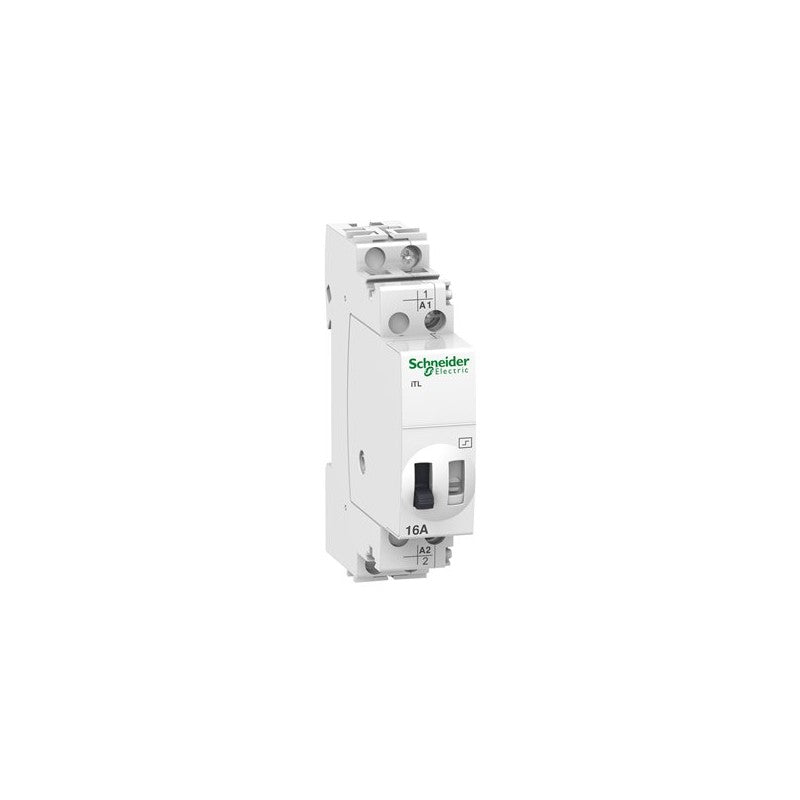

The Schneider Electric A9C30211 is an impulse relay from the iTL series, designed for control and switching applications. This single-pole relay features one normally open (NO) contact and is rated for a 16A current. It operates with a coil voltage of 24 VDC or 48 VAC at 50/60Hz, making it suitable for diverse power supply environments.

Technical details

• Series: iTL Impulse Relay
• Configuration: 1 Pole (1P)
• Contact Type: 1 Normally Open (NO)
• Current Rating: 16 Amperes (A)
• Coil Voltage (DC): 24 VDC
• Coil Voltage (AC): 48 VAC
• AC Frequency: 50/60 Hz
• Mounting Type: DIN rail mount (typical for iTL series, verify with datasheet)

Applications & compatibility

This impulse relay is commonly employed in building automation systems, lighting control circuits, and general industrial control panels. Its ability to latch its state after a momentary pulse makes it ideal for applications requiring memory functions without continuous power consumption, such as stairwell lighting timers or remote switching operations.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9C30211 or contact our technical team for cross-reference assistance with compatible iTL series components.
