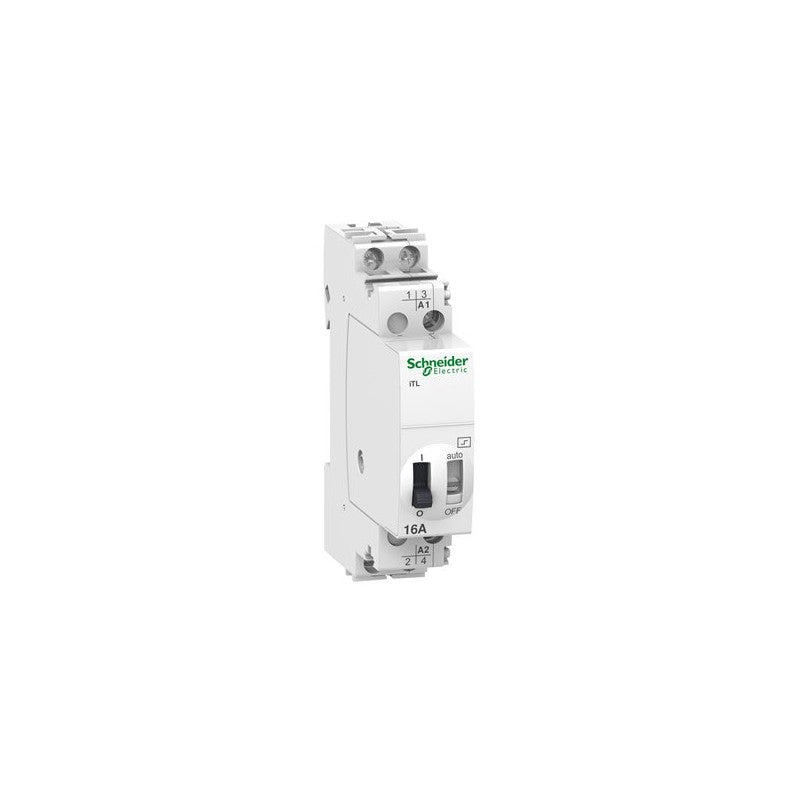

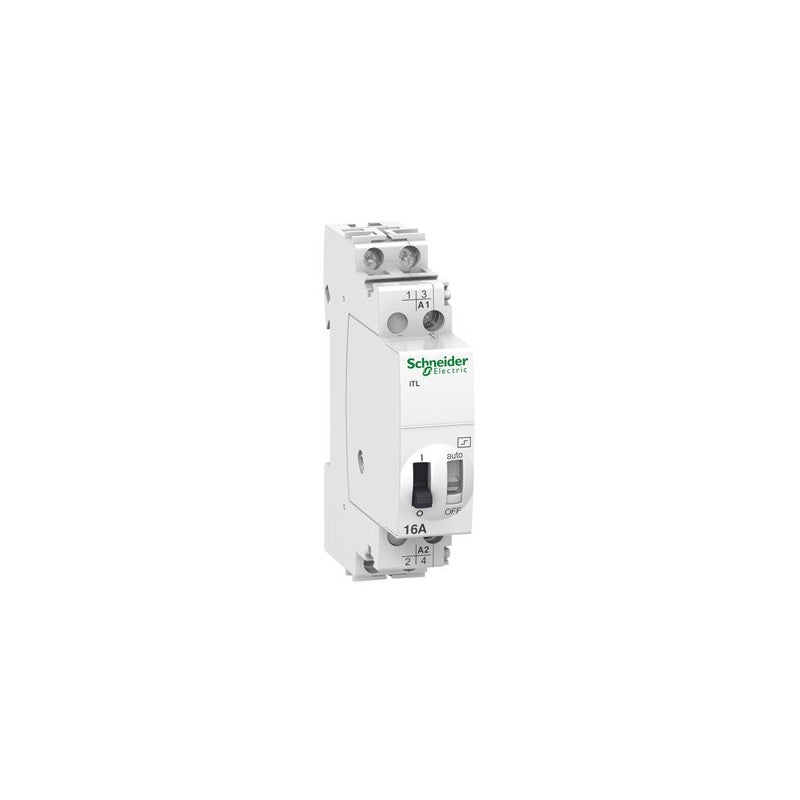

The Schneider Electric iTL impulse relay, model A9C30212, is a 2-pole device designed for control circuit applications. This relay features two normally open (NO) contacts, rated for 16A, and operates with a coil voltage of 24 VDC or 48 VAC at 50/60Hz. It is commonly integrated into building automation systems and industrial control panels for switching and latching functions.

Technical details

• Series: iTL Impulse Relay
• Number of Poles: 2
• Contact Configuration: 2 Normally Open (NO)
• Current Rating: 16A
• Coil Voltage: 24 VDC / 48 VAC
• Coil Frequency: 50/60 Hz
• Mounting Type: DIN rail mountable (verify datasheet for specific dimensions and rail compatibility)
• Actuation Type: Impulse (latching)

Applications & compatibility

This impulse relay is suitable for applications requiring latching or memory functions within control systems. It finds use in areas such as lighting control, motor control circuits, and automated process sequencing where a pulse signal is used to change the state of contacts, which then remain in that state until another pulse is received. Compatibility extends to various control panels and automation architectures utilizing 24 VDC or 48 VAC control voltages.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9C30212 or contact our technical team for cross-reference assistance with compatible Schneider Electric iTL components.
