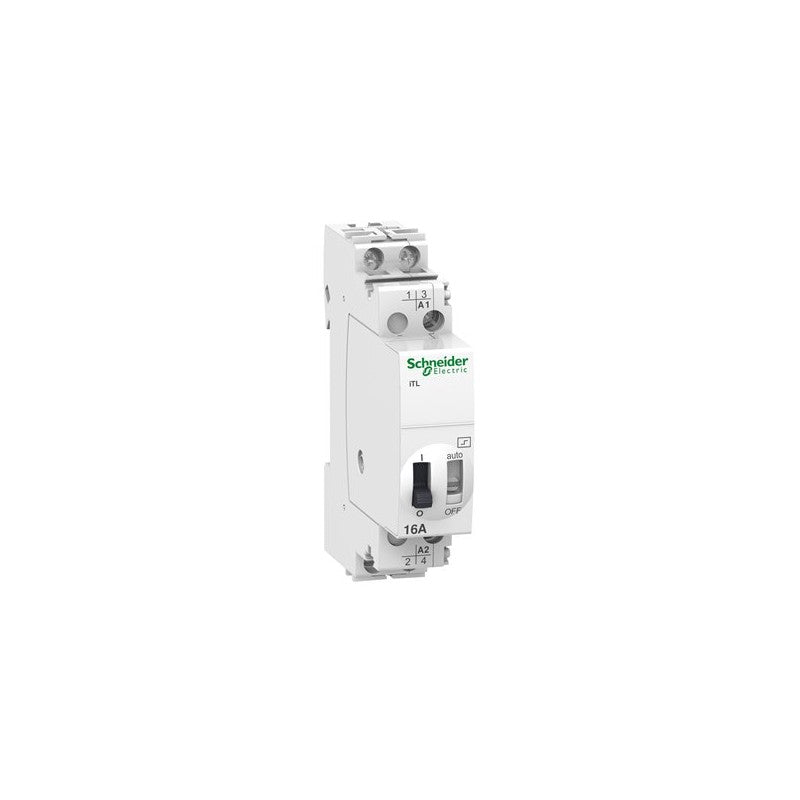

The Schneider Electric iTL impulse relay, model A9C30312, is a 2-pole device designed for control circuit applications. This relay features two normally open (NO) contacts, each rated for 16A, and operates with a coil voltage of 130 VAC at 50/60Hz or 48 VDC. It is a component commonly integrated into building automation systems and industrial control panels for switching and latching functions.

Technical details

• Series: iTL Impulse Relay
• Number of Poles: 2
• Contact Configuration: 2 Normally Open (NO)
• Contact Rating: 16A per pole
• Coil Voltage (AC): 130 VAC, 50/60Hz
• Coil Voltage (DC): 48 VDC
• Mounting Type: DIN rail mount (verify datasheet for specific dimensions)
• Insulation Voltage: 400V (verify datasheet for specific rating)

Applications & compatibility

This impulse relay is suitable for applications requiring maintained switching states after a momentary pulse, such as lighting control systems, motor control circuits, and automated process sequencing. It is compatible with standard industrial control panels and can be integrated into systems utilizing 130 VAC or 48 VDC control power.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9C30312 or contact our technical team for cross-reference assistance with compatible Schneider Electric iTL components.
