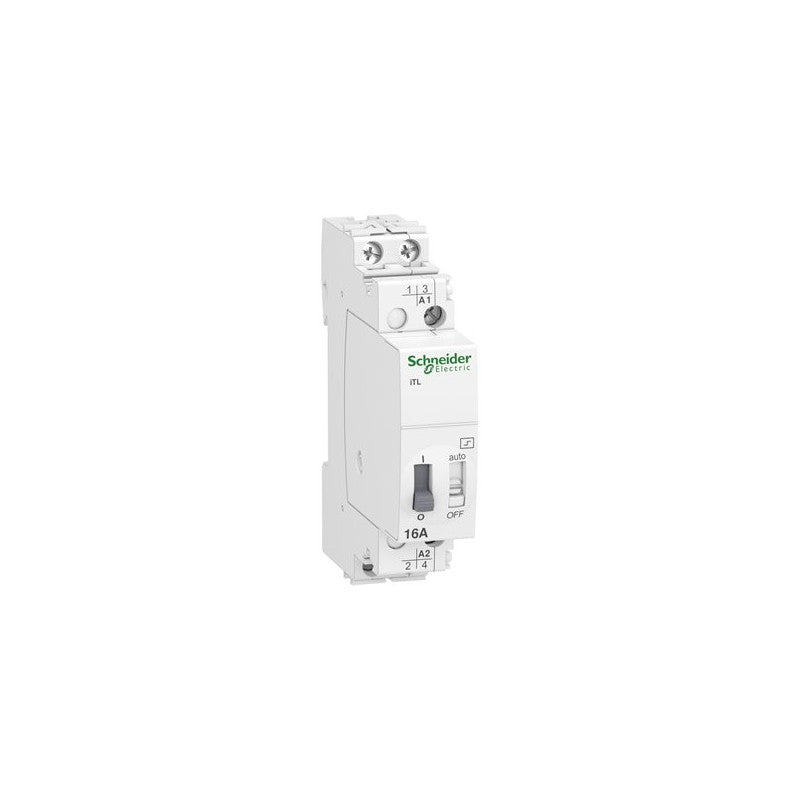

The Schneider Electric A9C30812 is an impulse relay from the iTL series, designed for control and switching applications. This 2-pole relay features two normally open (NO) contacts, rated for a continuous current of 16A. It is engineered to operate with a versatile coil voltage, accepting either 110 VDC or 230-240 VAC at 50/60 Hz, making it suitable for a wide range of power systems.

Technical details

• Series: iTL
• Number of Poles: 2
• Contact Configuration: 2 Normally Open (NO)
• Rated Operational Current (Ie): 16A
• Coil Voltage (DC): 110 VDC
• Coil Voltage (AC): 230-240 VAC
• AC Frequency: 50/60 Hz
• Type: Impulse Relay

Applications & compatibility

This impulse relay is commonly employed in electrical control panels for building automation, lighting control systems, and general industrial machinery. Its dual coil voltage capability allows for flexible integration into diverse electrical infrastructures, facilitating remote or automated switching operations in applications such as motor control circuits, solenoid valve actuation, or alarm signaling.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9C30812 or contact our technical team for cross-reference assistance with compatible iTL series components.
