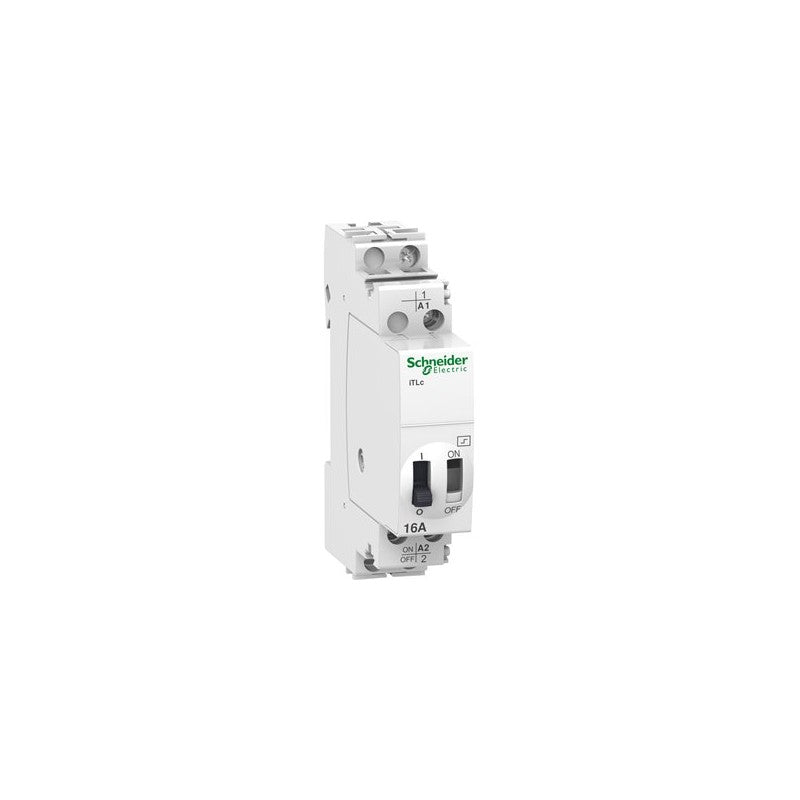

The Schneider Electric iTLc impulse relay is a single-pole, normally open (NO) device designed for control circuit applications. This relay features a 16A contact rating and operates with a 24 VAC coil voltage, compatible with 50/60Hz power frequencies. It is commonly integrated into building automation systems and industrial control panels for switching and latching functions.

Technical details

• Series: iTLc
• Number of Poles: 1
• Contact Configuration: 1 Normally Open (NO)
• Rated Operational Current (Ie): 16A
• Coil Voltage: 24 VAC
• Coil Frequency: 50/60 Hz
• Type: Impulse Relay
• Mounting Type: DIN rail mountable (verify specific dimensions against datasheet)

Applications & compatibility

This impulse relay is suitable for applications requiring latching or memory functions within control circuits. It finds use in lighting control systems, motor control circuits, and general-purpose switching applications where a maintained state is required after a momentary pulse. Compatibility extends to various control panels and automation systems utilizing 24 VAC control power.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9C33111 or contact our technical team for cross-reference assistance with compatible Schneider Electric control components.
