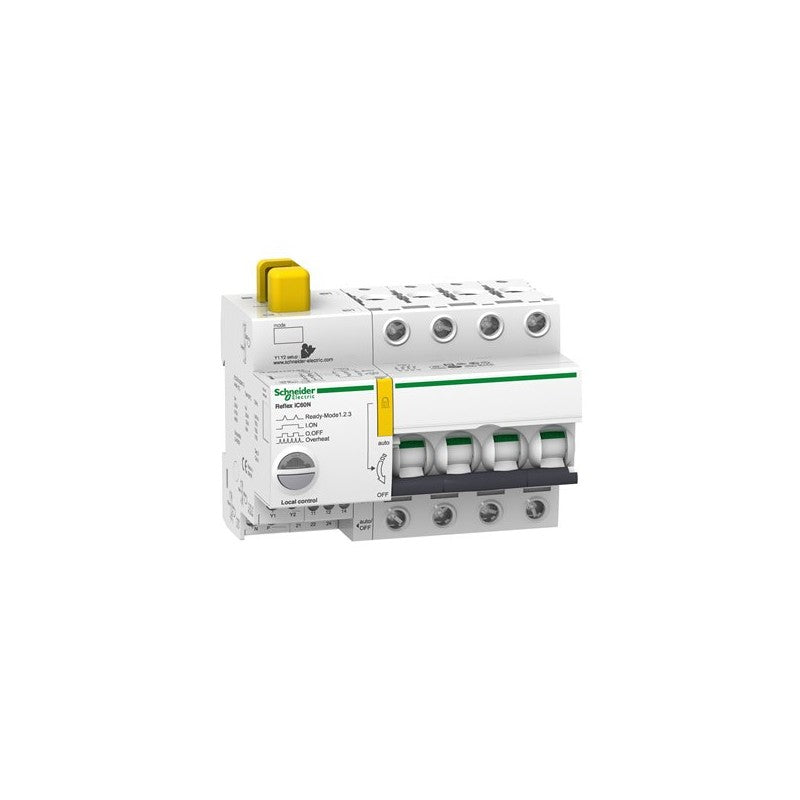

The Schneider Electric Reflex iC60N Ti24 is a 16 Amp, 4-pole Miniature Circuit Breaker (MCB) designed for overcurrent protection in industrial electrical systems. This device features a Type D tripping curve, indicating its suitability for applications with high inrush currents, such as motor control circuits. Its integrated control functionality offers advanced protection and operational capabilities within the iC60N series.

Technical details

• Series: Reflex iC60N
• Type: Miniature Circuit Breaker (MCB)
• Poles: 4
• Current Rating: 16 A
• Tripping Curve: Type D
• Integrated Control: Yes (Ti24)
• Voltage Class: Verify with manufacturer datasheet for specific voltage ratings (e.g., AC 230/400V).
• Interrupting Capacity: Verify with manufacturer datasheet for specific breaking capacity (kA).

Applications & compatibility

This MCB is commonly employed in control panels and distribution boards for protecting inductive loads, particularly motors, in applications such as conveyor systems, pumps, and HVAC equipment. Its Type D curve ensures reliable operation without nuisance tripping during motor startup phases.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9C63416 or contact our technical team for cross-reference assistance with compatible Schneider Electric protection devices.
