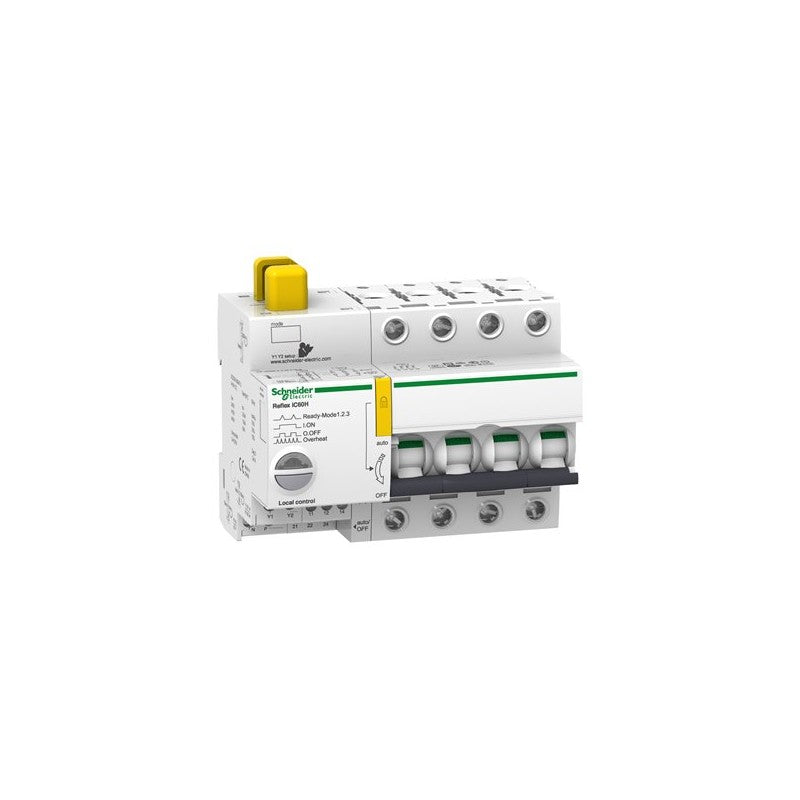

The Schneider Electric Reflex iC60H Ti24 is a 4-pole miniature circuit breaker designed for overcurrent protection in industrial electrical systems. This integrated control MCB features a Type D tripping curve, indicating its suitability for applications with high inrush currents, such as motor loads. Its construction within the iC60H series signifies a robust design for demanding environments.

Technical details

• Series: Reflex iC60H
• Number of Poles: 4
• Current Rating: 10 A
• Tripping Curve: Type D
• Integrated Control: Yes (Ti24)
• Voltage Rating: Verify with manufacturer datasheet for specific voltage class (e.g., 230/400V AC).
• Interrupting Capacity: Verify with manufacturer datasheet.
• Terminal Type: Verify with manufacturer datasheet.

Applications & compatibility

This Schneider Electric circuit breaker is commonly employed in control panels and distribution boards for protecting inductive loads and motor circuits. Its Type D curve makes it ideal for applications found in packaging machinery, conveyor systems, and HVAC equipment where motors are prevalent and experience significant startup currents.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9C66410 or contact our technical team for cross-reference assistance with compatible iC60H series components.
