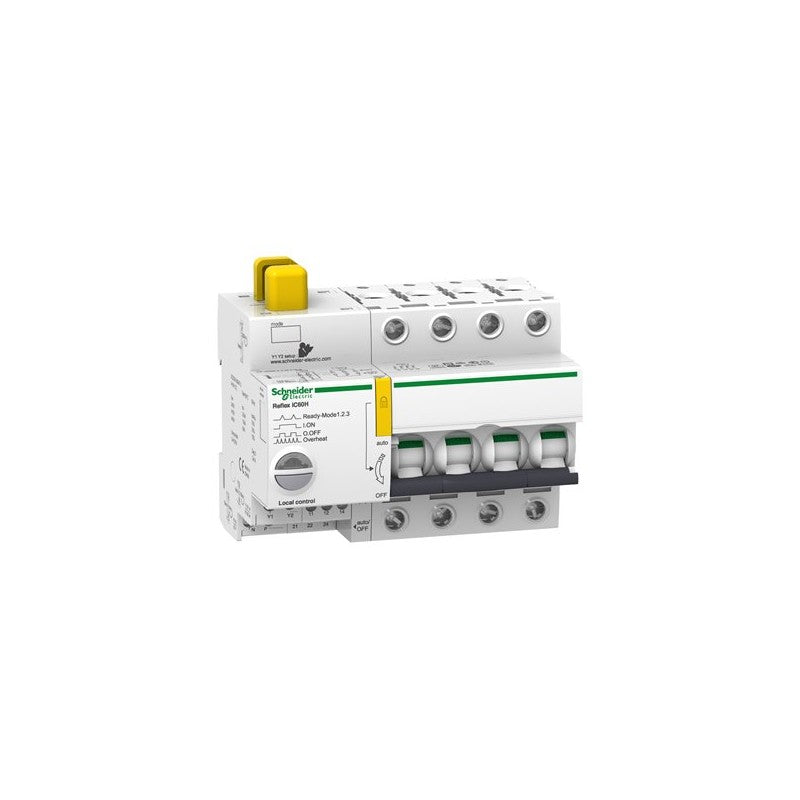

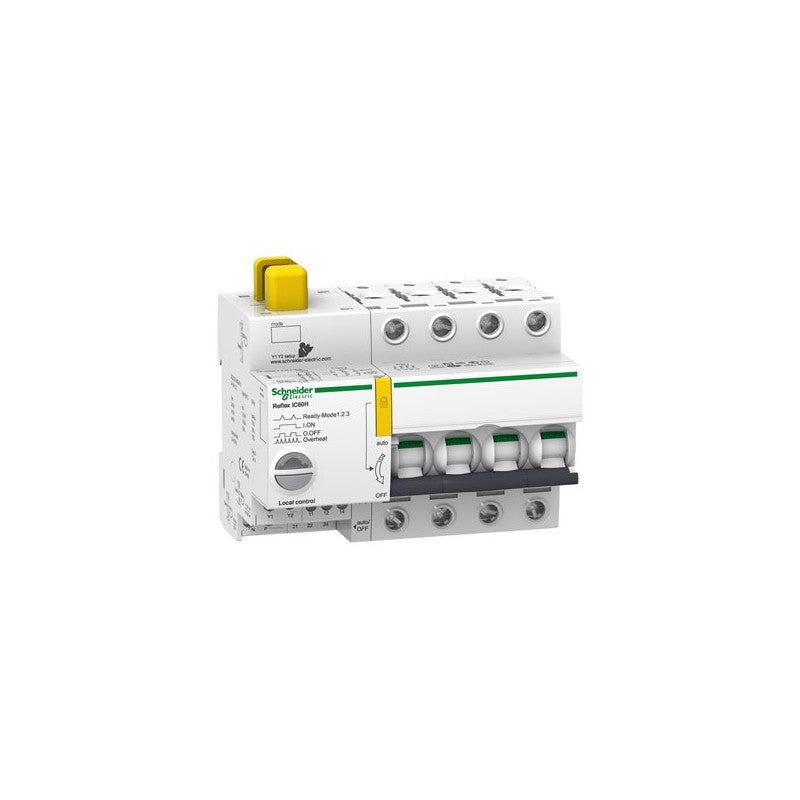

The Schneider Electric Reflex iC60H Ti24 is a 4-pole Miniature Circuit Breaker (MCB) designed for reliable circuit protection in industrial environments. This specific unit, identified by the part number A9C66416, features a Type D tripping curve, indicating its suitability for applications with high inrush currents, such as motor loads. It is integrated with a Ti24 control mechanism for enhanced functionality.

Technical details

• Series: Reflex iC60H
• Poles: 4
• Current Rating: 16 A
• Tripping Curve: Type D
• Integrated Control: Ti24
• Voltage Class: Verify with manufacturer datasheet for specific operational voltage ratings.
• Interrupting Capacity: Verify with manufacturer datasheet for specific fault current interruption capabilities.
• Terminal Type: Verify with manufacturer datasheet for specific connection methods.

Applications & compatibility

This Schneider Electric MCB is commonly employed in electrical distribution panels for protecting circuits in machinery such as pumps, fans, and conveyors where inductive loads are prevalent. Its Type D curve makes it particularly effective in preventing nuisance tripping during motor startup sequences, ensuring continuous operation of critical equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9C66416 or contact our technical team for cross-reference assistance with compatible Reflex iC60H components.
