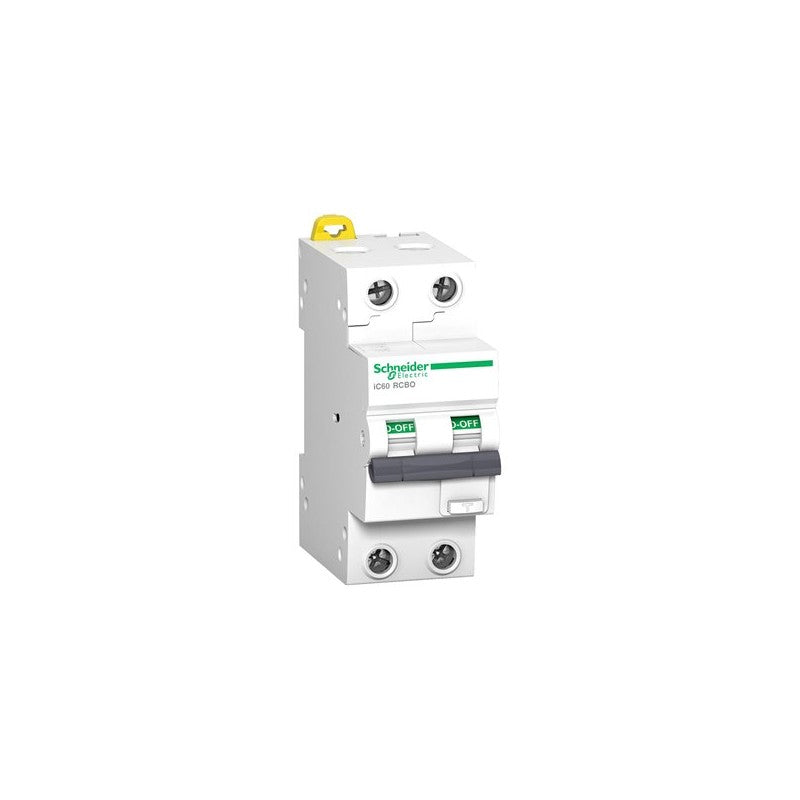

The Schneider Electric Acti9 iC60 RCBO is a 2-pole residual current circuit breaker with overcurrent protection, designed for reliable electrical safety in commercial and industrial environments. This unit integrates the functions of a circuit breaker and a residual current device (RCD) into a single compact module, simplifying installation and panel space. It is engineered to provide protection against overloads, short circuits, and earth leakage faults, safeguarding personnel and equipment.

Technical details

• Series: Acti9 iC60
• Number of Poles: 2P
• Rated Current: 20 A
• Trip Curve: C Curve (suitable for inductive loads with moderate inrush current)
• Short-Circuit Breaking Capacity: 10000 A / 15 kA (IEC 60898-1 / IEC 60947-2)
• Residual Current Sensitivity: 30 mA
• Residual Current Type: AC type (detects sinusoidal AC residual currents)
• Voltage Rating: Verify against manufacturer datasheet for specific voltage compatibility (typically 230/400V AC for this series).

Applications & compatibility

This RCBO is commonly employed in distribution boards for residential, commercial, and light industrial applications requiring enhanced protection against electrical hazards. It is suitable for protecting circuits in lighting systems, socket outlets, and small motor loads where both overcurrent and earth leakage protection are mandated. Its compatibility extends to standard DIN rail mounting systems found in most electrical enclosures.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9D07220 or contact our technical team for cross-reference assistance with compatible Acti9 components.
