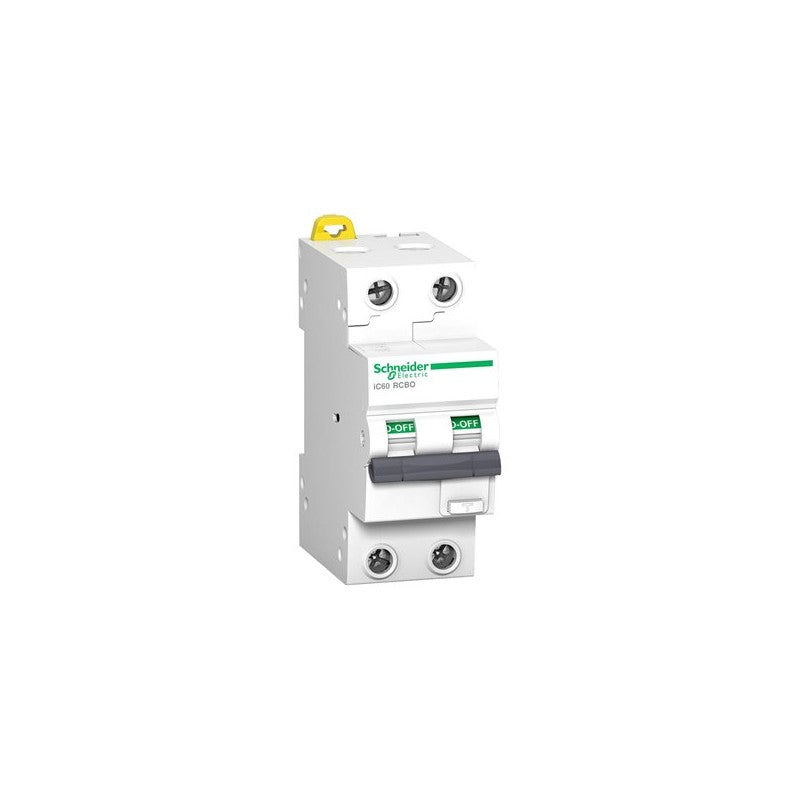

The Schneider Electric Acti9 iC60 RCBO is a compact residual current circuit breaker with overcurrent protection, designed for reliable electrical safety in commercial and industrial environments. This 2-pole device integrates the functions of a miniature circuit breaker (MCB) and a residual current device (RCD) into a single unit, offering enhanced protection against overload, short circuits, and earth leakage faults. It is suitable for protecting circuits in control panels and distribution boards where space is a consideration.

Technical details

• Series: Acti9 iC60
• Number of Poles: 2P
• Current Rating: 32 A
• Trip Curve: C Curve
• Breaking Capacity: 10000A / 15kA (IEC 60898-1)
• Residual Current Sensitivity: 30 mA
• Residual Current Type: AC type (detects sinusoidal AC residual currents)
• Voltage Rating: Not explicitly stated in provided information; verify against manufacturer datasheet for specific AC/DC voltage compatibility.

Applications & compatibility

This RCBO is commonly employed in distribution boards for residential, commercial, and light industrial applications. It provides essential protection for circuits supplying lighting, socket outlets, and small appliances where earth fault protection is mandated. Its compact design makes it ideal for installations with limited space, such as in control cabinets for building automation systems or small machinery.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9D07232 or contact our technical team for cross-reference assistance with compatible Acti9 components.
